Anycubic Tough Resin ultra

Description

Durable Impact Resistance & Exceptional Flexibility

This resin is distinguished by its outstanding toughness, superb flexibility, and remarkable resilience. Its capacity to swiftly recover its original shape following deformation from external forces ensures a heightened resistance to damage.

This material exhibits remarkable resistance to brittleness, softening, and corrosion, even in high humidity or damp environments. It retains high elasticity and flexibility, ensuring outstanding performance in extreme temperature conditions.

This resin proves effective for direct model making as well as serving as a valuable additive. When blended with other resins, it significantly enhances their toughness and durability.

Upon curing, this resin ensures a harm-free and non-irritating experience on the skin, offering enhanced flexibility for a superior touch and feel. Ideal for crafting daily wearable models like earphone covers and elf ears.

This formulation is of low order and non-irritating, fostering a serene and comfortable printing environment. Its composition significantly minimizes volatile organic compounds, making it an environmentally-friendly and green choice.

Resin Parameters

UV wavelength	365-405nm	Elongation at break	70-80%
Density	1.05-1.25g/cm³	Molding shrinkage	5.1-6.2%
Viscosity	500-900 cP·mPa·s	Flexural strength	15-25 MPa
Hardness	71-75D	Flexural modulus	350-800 MPa
Bottom exposure time	20-40s	Normal exposure time	1.5-3s
Heat deflection temp	50-55℃	Resin wash	Alcohol
Tensile strength	20-28 MPg	Conservation period	1.5 year

Model Print

Recommended Printing Parameters

Printer Model	Layer Thickness	Exposure Time	Light-Off Time	Bottom Exposure Time	Bottom Layer	Anti-Aliasing Level	Z Lift Distance	Z Lift Speed	Z Retract Speed
Photon Mono M7 Pro	0.05mm	2s	2s	25s	4	1	8mm	6mm/s	6mm/s
Photon Mono M7 Max	0.05mm	2s	0.5s	30s	5	1	8mm	6mm/s	6mm/s
Photon Mono M7	0.05mm	2.2s	1s	25s	4	1	8mm	6mm/s	6mm/s
Photon Mono 4	0.05mm	2.8s	1s	30s	5	1	6mm	4mm/s	6mm/s
Photon Mono 4 Ultra	0.05mm	2.6s	1s	30s	5	1	5mm	8mm/s	8mm/s
Photon Mono M5s Pro (Normal printing mode)	0.05mm	3.6s	1s	30s	5	1	8mm	6mm/s	6mm/s
Photon Mono M5s Pro (Fast printing mode)	0.1mm	3.8s	1s	30s	5	1	5mm	20mm/s	20mm/s
Photon Mono M5s (Normal printing mode)	0.05mm	2.8s	1s	25s	5	1	8mm	5mm/s	6mm/s
Photon Mono M5s (Fast printing mode)	0.1mm	3s	1s	25s	6	1	5mm	20mm/s	20mm/s
Photon Mono M5	0.05mm	2.8s	1s	25s	5	1	8mm	5mm/s	6mm/s
Photon M3 Max	0.05mm	3s	2s	35s	6	1	10mm	2mm/s	3mm/s
Photon Mono X 6Ks	0.05mm	2.5s	0.5s	20s	5	1	8mm	3mm/s	4mm/s
Photon Mono X2	0.05mm	2.5s	1s	20s	5	1	8mm	2mm/s	3mm/s
Photon Mono 2	0.05mm	2.5s	1s	25s	5	1	6mm	4mm/s	6mm/s
Photon D2	0.05mm	2.5s	1s	28s	5	16	5mm	2mm/s	3mm/s
Photon M3 Plus	0.05mm	1.5s	1s	25s	6	1	6mm	6mm/s	6mm/s
Photon M3	0.05mm	2s	1s	25s	5	1	6mm	3mm/s	4mm/s
Photon M3 Premium	0.05mm	2.5s	1s	25s	2	1	8mm	6mm/s	6mm/s
Photon Ultra	0.05mm	2s	1s	35s	5	4	5mm	2mm/s	2mm/s
Photon Mono X	0.05mm	2s	1s	28s	4	1	8mm	2mm/s	3mm/s
Photon Mono 4K	0.05mm	2s	1s	40s	6	1	6mm	4mm/s	6mm/s
Photon Mono X 6K	0.05mm	2s	1s	28s	6	1	8mm	2mm/s	3mm/s
Photon Mono SQ	/	/	/	/	/	/	/	/	/
Photon Mono SE	/	/	/	/	/	/	/	/	/
Photon Mono	0.05mm	2.5s	1s	40s	6	1	6mm	4mm/s	6mm/s
Photon S	/	/	/	/	/	/	/	/	/

Color Type

Instructions for Use

(1) Before use:
Shake the liquid resin before use; Clean the resin tank and the molding platform to keep the bottom of the resin tank in lighttransmission.

(2) When using:
Unscrew the cap and add it to the resin tank according to the equipment requirements; Select the correct print parameters and settings for printing.

(3) After use:
After printing, please use the matching tools for post-processing, including blade, diagonalpliers, tweezers, containers, gloves; ethanol(≥95%), lactate or isopropyl alcohol cleaning solution;

(4) Post-processing steps:
A. Remove the printed model from the molding platform with a blade;
B. Submerge the model in the cleaning solution, rinsed or ultrasonically washed, then takenout and drained; ANYCUBlC Wash and Cure machines are suggested to ensure better effect.
C. Proper processing, such as removing support, polishing, coloring, etc.

Precautions

The ideal condition for storing uncured resin is a cool, dark place at room temperature and protect from light to avoid high temperature or sunlight.
Suggested operating temperature is 18-35’c, and a low temperature may affect the printing effect, thus, the resin can be properly preheated before use (not more than 60°C).
If the resin pigment settles, it can be used after stirring or shaking.
In order to ensure the performance of the resin, please take out the model in time after cleaning to avoid the model soaking in water for a long time.
To ensure the mechanical properties of the model, please perform post-curing in time after cleaning and drying.
To ensure the ideal performance of the curable material, it is necessary to control the intensity and time of the light source after curing. Therefore, the following steps are recommended:
(1) The intensity of mercury lamp or LeD light source is 5-10mW/m?, and the duration is no more than 1 hour (self-regulation);
(2)The exposure time in the sun (summer) is around 1 hour;
(3) Proximity or long-term exposure under strong light sources such as high-power high-pressure mercury lamps is prohibited.
(4) lt is recommended to print in a dark room or be covered with a lid while printing as resin is a photosensitive material.

Ps: Material properties willvary depending on the molding equipment, post-curing method and testing equipment. For safetyinformationplease refer to the MSDS of this product. lf you encounter any problems while using, please feel free to contact us.

Additional information

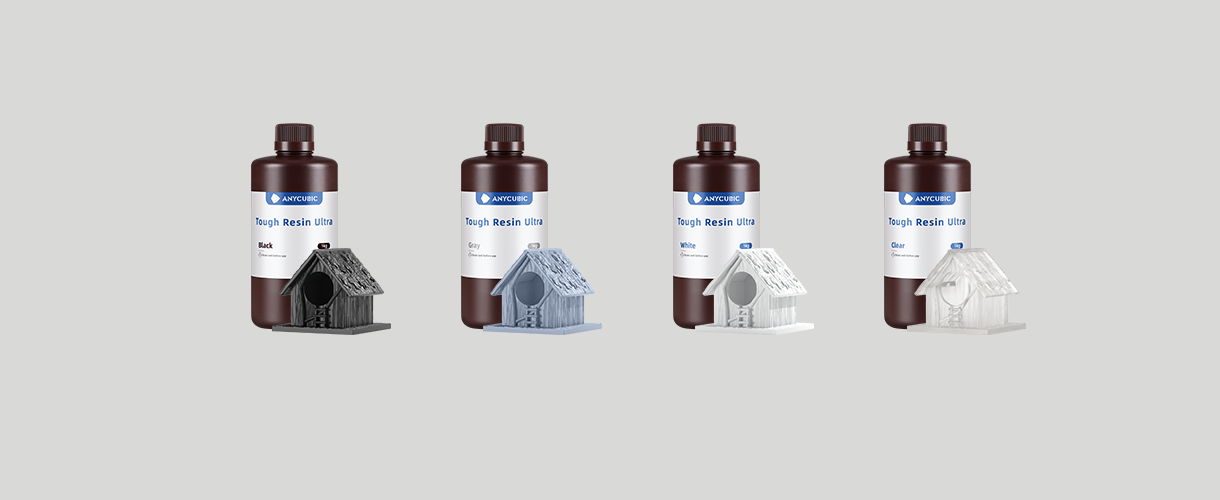

Colours	Black, Grey, White
