Description

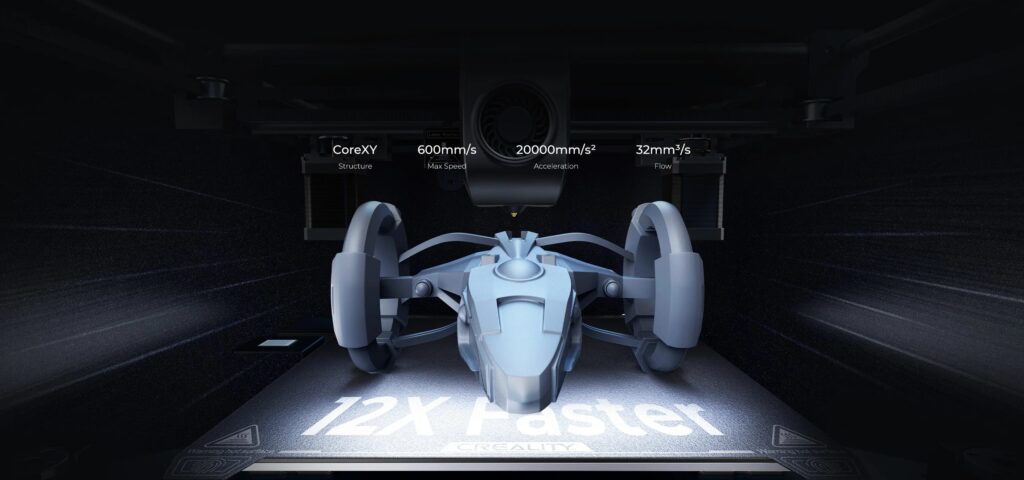

12X Faster, Defy Limitations
It can be as productive as several 3D printers together.

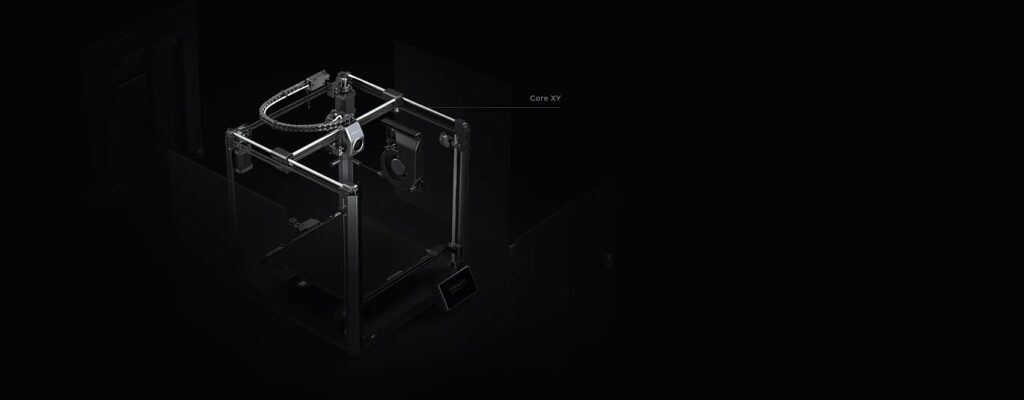

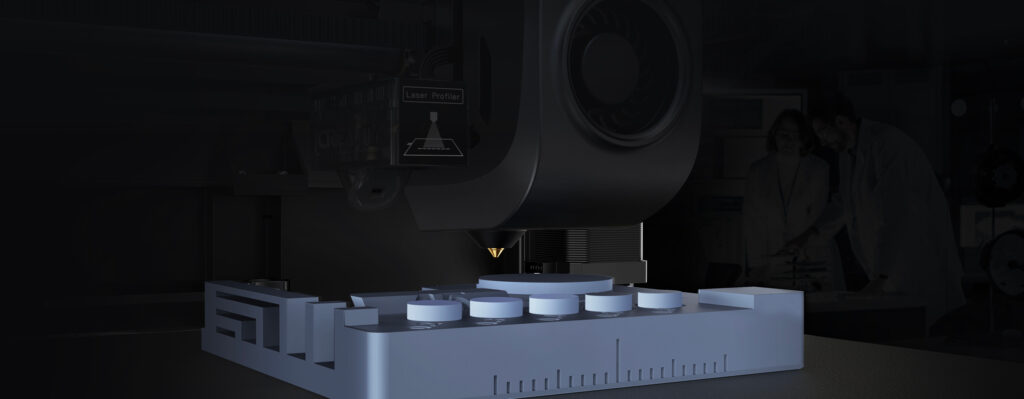

K1 Max combines the nimble Core XY with a 190g lightweight printhead for less motion inertia.
Agile and swift.

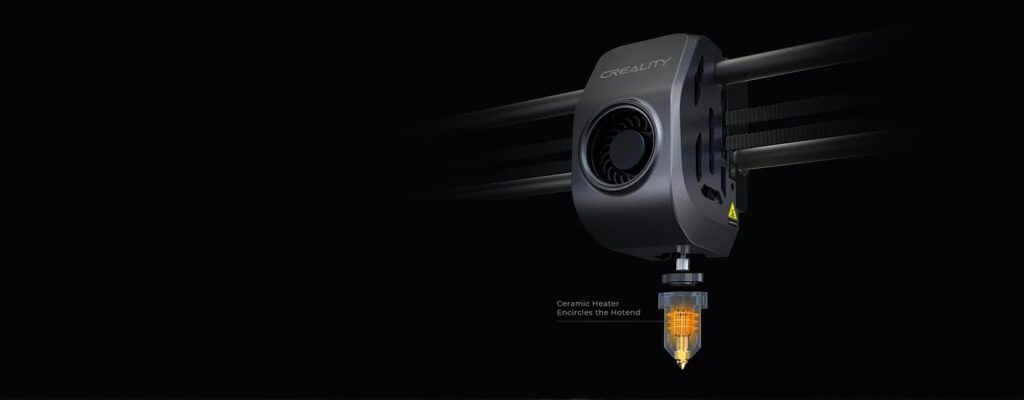

New ceramic heater, encircling the entire hotend. It heats to 200℃ in 40s and melts the filament instantly.
Dual-gear direct extruder, delivering strong extrusion force.
Hotend with a titanium alloy heatbreak and a hardened steel nozzle, working well in up to 300℃.

Get Cool Models
On the Fly

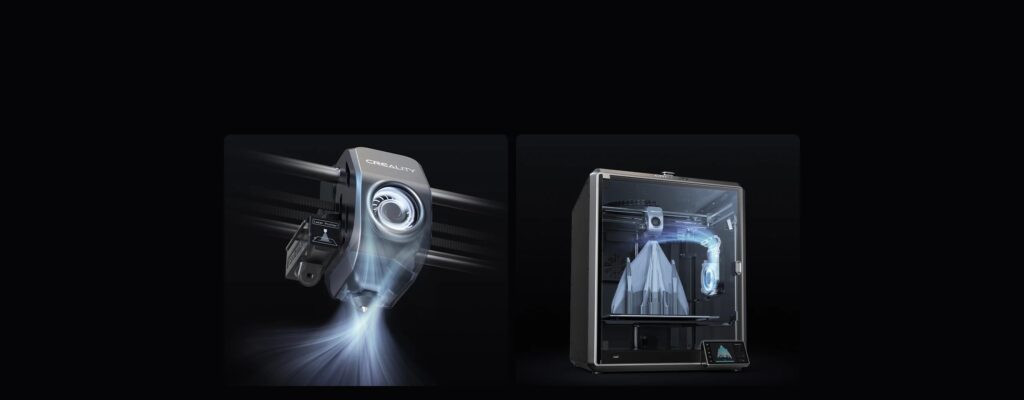

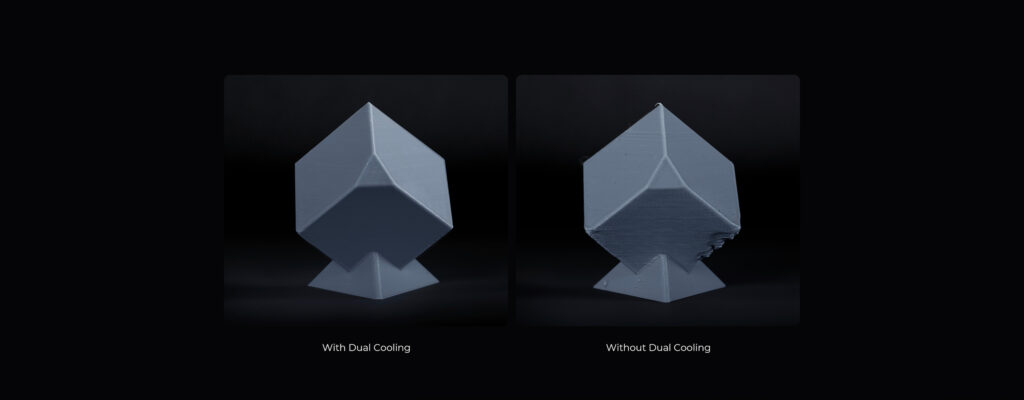

Model Cooling by Dual Fans
A large fan on the printhead with air ducts cools the model directly.
An 18W auxiliary fan in the build chamber enhances the cooling effect, too.

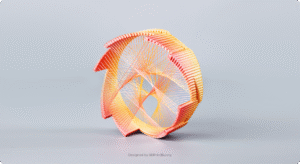

The model hardens before any stringing and warping could happen.
It allows support-free bridges and overhangs.

Creality Print 4.3 with Speed Genes
The latest self-developed slicer Creality Print 4.3 includes rich presets,
and streamlines the slicing process into 3 simple stages.
Even better, it bolsters high-speed printing with variable line width, arc path, and so on.

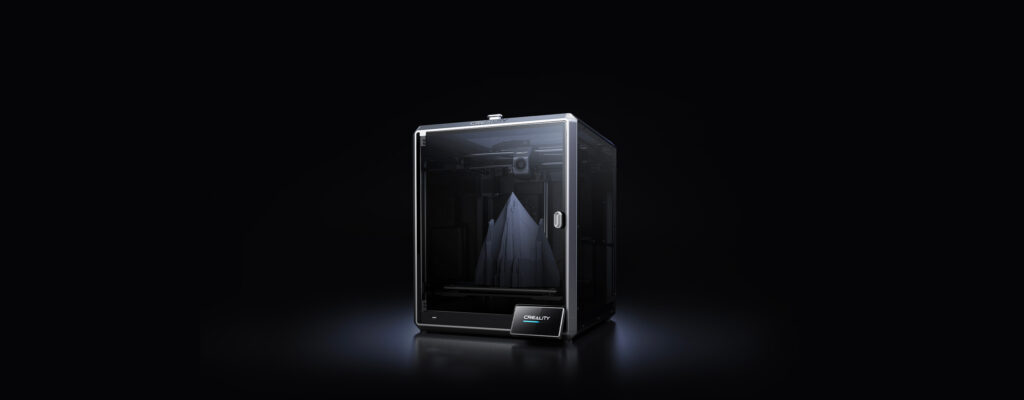

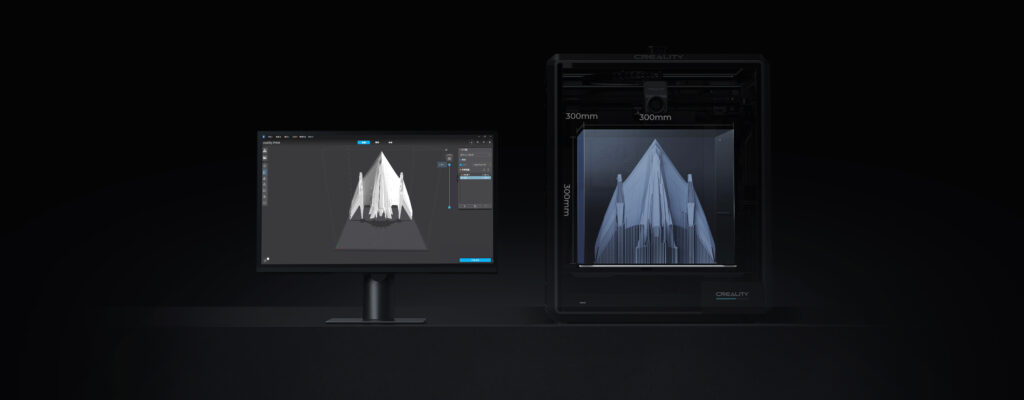

Max Capacity, Efficient Use of Space

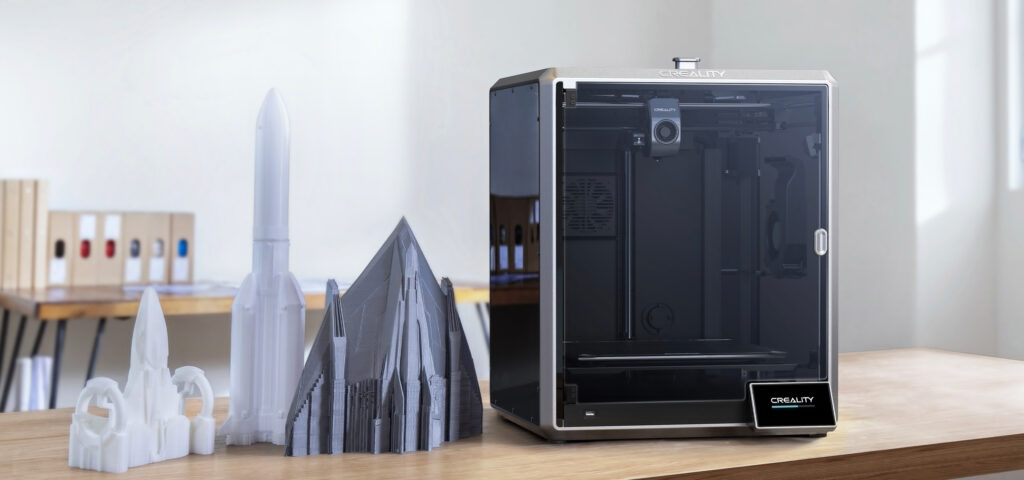

K1 Max boasts a 300x300x300mm large build volume, great for rapid prototyping or design verification.
It also offers a high build volume to printer size ratio of 25.5%.
K1 Max is the most size-efficient Fused deposition modeling 3D printer in its class.


AI-assisted Carefree Printing

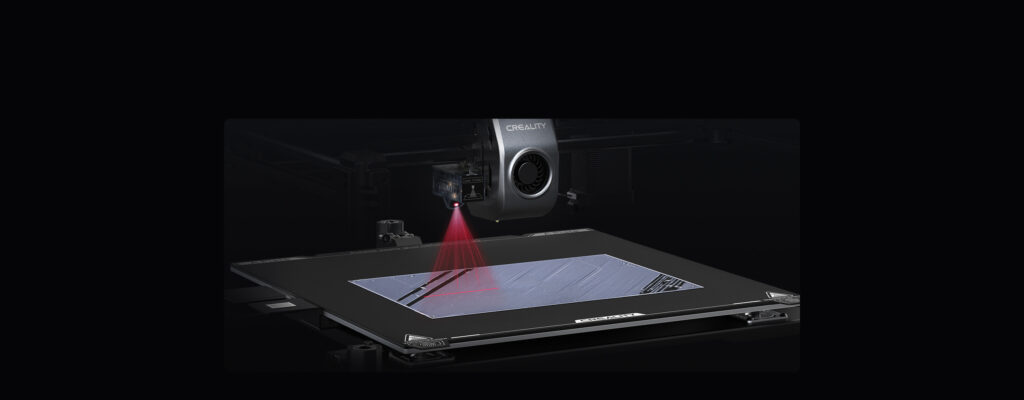

AI LiDAR Takes Care of the First Layer
Still worry about the first layer? Just leave it all to the AI LiDAR of K1 Max.
The 1 μm resolution LiDAR will scan the first layer on its own. It will pause printing
and tell you immediately if something goes wrong.

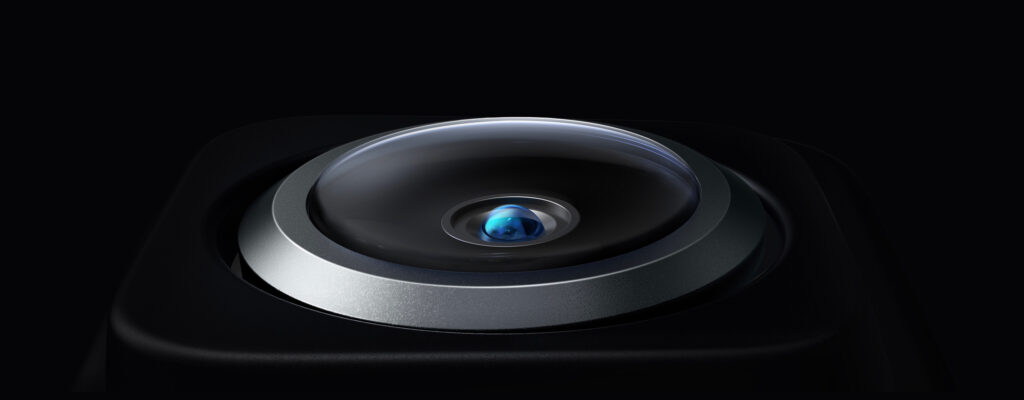

AI Camera Keeps a Keen Watch
K1 Max uses an AI camera to watch over spaghetti failure, foreign objects, debris, etc.
It will alert you when an error occurs.
It also supports real-time monitoring and creates time-lapses for sharing.

Smart System, Unbridled Performance
K1 Max adopts the smart Creality OS. It features a straightforward UI,
and syncs data and commands with PC, phone, Cloud, and add-on modules.
The snappy dual-core 1.2GHz CPU powers high-speed printing with ease.
The 8G ROM stores up to 400 model files and enables quick writing and reading.

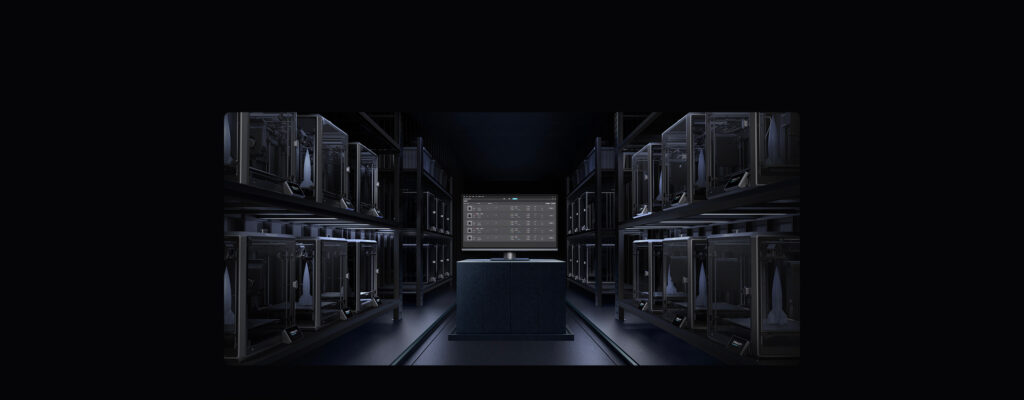

Intelligent Aid to Your Print Farm
Once K1 Max is connected via WiFi or RJ45 Ethernet port to the internet or data-secure LAN,
you can monitor and control the printing from a PC or phone with Creality Print software or Creality Cloud.
Even better, when many K1 Max printers are online, they can be easily clustered or grouped for volume production.

Trustworthy Print Quality

Rigid Frame, Stable Quality
The frame of K1 Max is built with rigid die-cast aluminum alloy parts.
It enables steady printing at high speed. And the print quality is excellent the whole time.

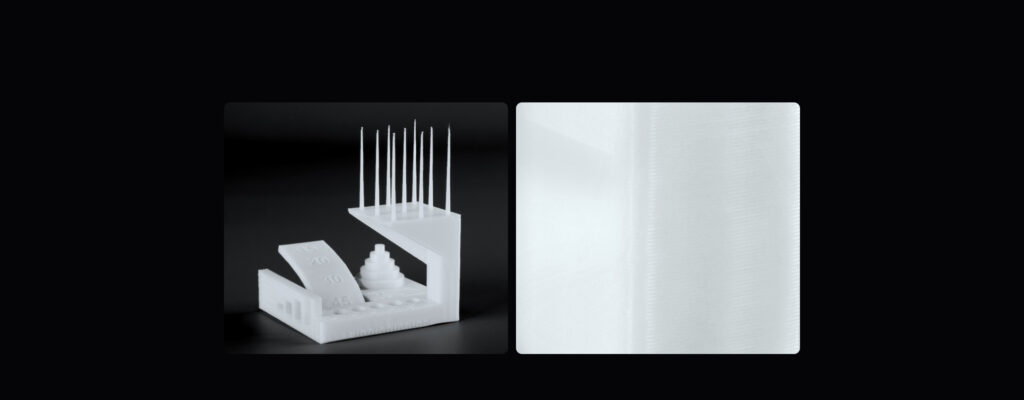

Delicate Texture without Z-banding
The upgraded Z-axis with more accurate positioning reduces Z-banding effectively.
The texture has never been so subtle.

Better Feeding with Motion Advance
The motion advance function delivers the optimal feeding flow. It reduces blobs and oozes effectively.

Intuitive for Everyone

Hands-free Auto Leveling

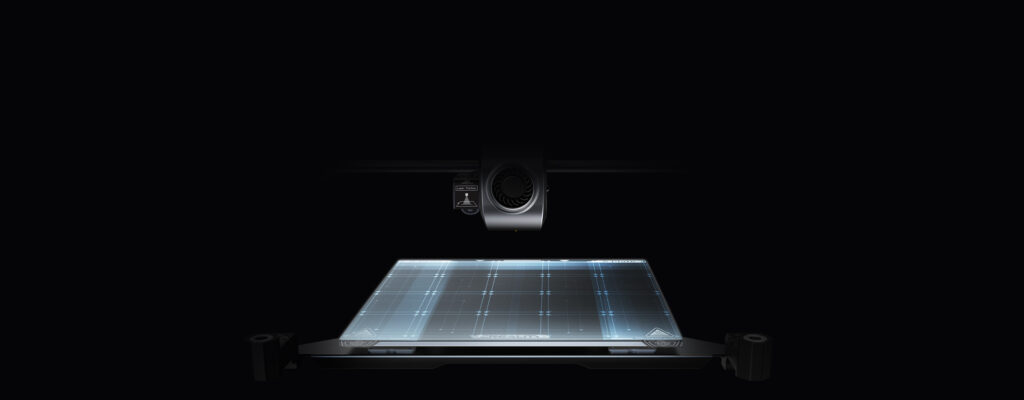

Strain sensors in the heatbed generate an accurate leveling mesh for auto compensation.

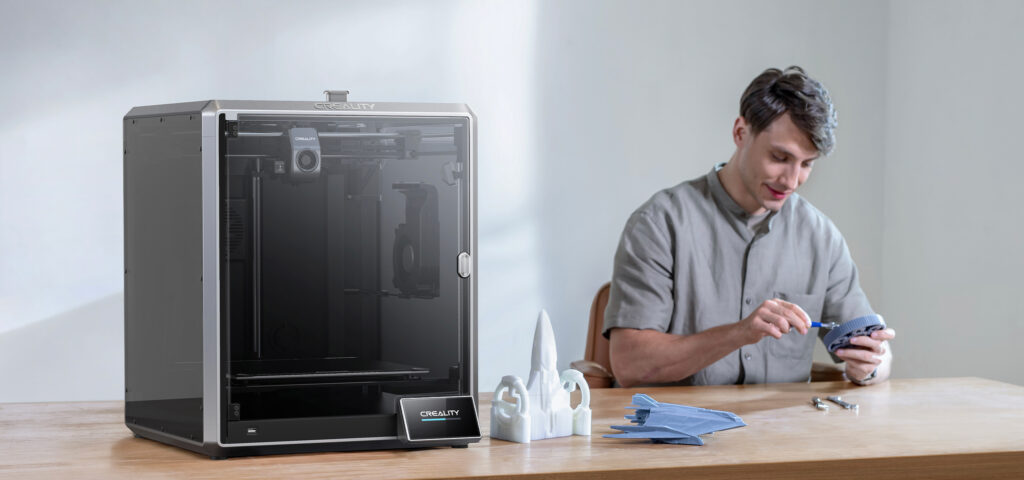

Print Right out of the Box
K1 Max is assembled and calibrated before shipment and built-in with a boot-up quick guide.
You can start printing the moment your K1 Max arrives.

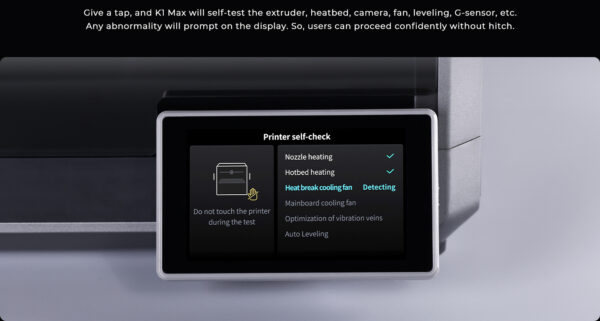

Minimal Operations, If Any

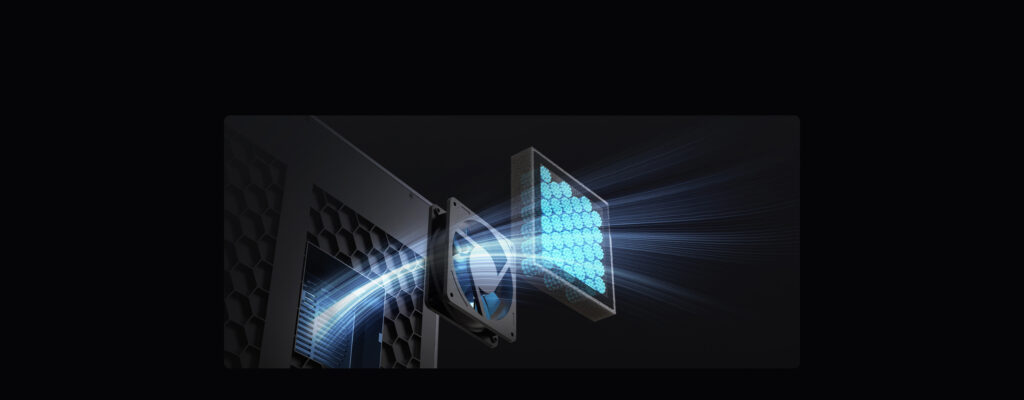

Effective Air Purifier
The built-in air filters will purify unhealthy compounds generated during printing,
making printing much more pleasant.

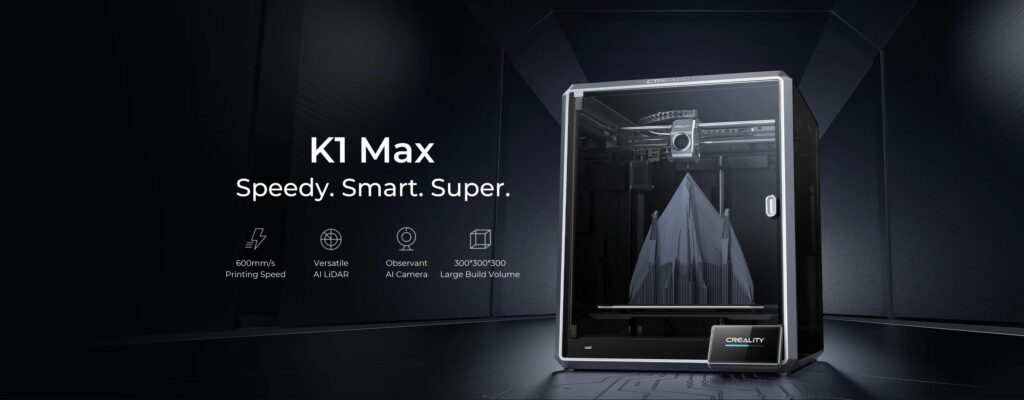

K1 Max 3D Printer
Printing Technology: Fused deposition modeling
Build Volume: 300*300*300mm
Product Dimensions: 435*462*526mm
Package Dimensions: 508*508*608mm
Net Weight: 18kg
Gross Weight: 25.04kg
Printing Speed: ≤600mm/s
Acceleration: ≤20000mm/s²
Printing Accuracy: 100±0.1mm
Layer Height: 0.1-0.35mm
Extruder: Dual-gear direct drive extruder
Filament Diameter: 1.75mm
Nozzle Diameter: 0.4mm(compatible with 0.6/0.8mm)
Nozzle Temperature: ≤300℃

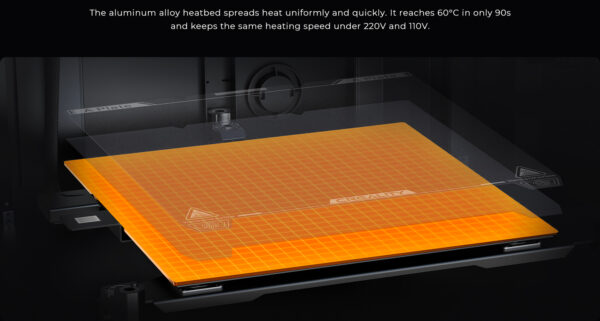

Heatbed Temperature: ≤100℃

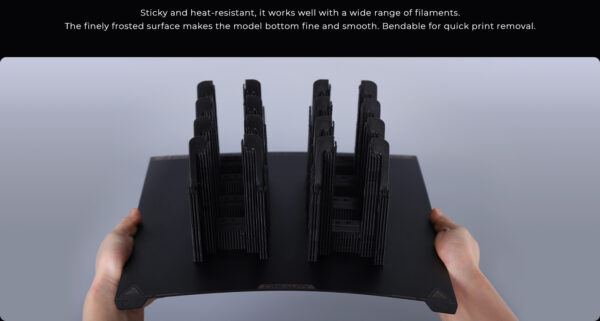

Build Surface: Flexible build plate
Leveling Mode: Dual hands-free auto leveling
File Transfer: USB drive, Ethernet, WiFi
Display Screen: 4.3″ color touch screen
AI Camera: Yes
AI LiDAR: Yes
Power Loss Recovery: Yes
Filament Runout Sensor: Yes
Input Shaping: Yes
Lighting Kit: Yes
Sleep Mode: Yes
Rated Voltage: 100-240V ~, 50/60Hz
Rated Power: 1000W
Supported Filaments: PLA, PETG, PET, TPU, PA, ABS, ASA, PC, PLA-CF, PA-CF, PET-CF
Printable File Format: G-Code
Slicing Software: Creality Print; compatible with Cura, Simplify3D, PrusaSlicer
File Formats for Slicing: STL, OBJ, AMF
UI Languages: English, Spanish, German, French, Russian, Portuguese, Italian, Turkish, Japanese, Chinese
