Key Specifications

• Build Volume: 298 × 164 × 300 mm (14.7 liters)

• Display: 13.6″ 7K monochrome LCD

• XY Resolution: 46 µm

• Z-Axis Resolution: 10 µm

• Light Source: COB + front-facing reflectors + Fresnel lens

• Light Intensity: 4500 ± 500 µW/cm²

• Light Uniformity: ≥90%

• Printing Speed:

  • Standard Resin (0.05 mm layer): ≤31 mm/h

  • Standard Resin (0.1 mm layer): ≤63 mm/h

  • High-Speed Resin (0.1 mm layer): ≤86 mm/h

• Power Supply: 180W

• Connectivity: USB, Wi-Fi, LAN (expected Q4 2024)

• Software Compatibility: Anycubic Slicing, CHITUBOX, Lychee (support expected by end of December 2024)

• Weight: 24 kg

• Dimensions: 425 × 362 × 652 mmGeekbuying+9anycubic.biz+93DJake Ireland+9eBay+4VERTEX3D+43dmcast.com+4anycubic.biz+33dmcast.com+33dprinteddecor.com+3anycubic.biz+33dprinteddecor.com+33dmcast.com+33dmcast.com+43DJake Ireland+43dprinteddecor.com+4

 Design & Build

• Build Platform: Laser-engraved aluminum alloy

• Resin Vat: 1.3L unibody design with scale lines

• Hinged Cover: UV-blocking, one-hand operation

• Air Purifier Port: USB connection for optional air purifier

• Screen: 4.3″ touch-control panel

• Material Compatibility: Supports various resins including high-speed, water-washable, standard, ABS-like, and plant-basedTechRadar+43dprinteddecor.com+43dmcast.com+43dmcast.com+33DJake Ireland+33dprinteddecor.com+33DJake Ireland+33dmcast.com+3VERTEX3D+3

 Performance & Usability

• Leveling: 4-point manual leveling

• App Support: Yes, for remote monitoring and control

• Language Support: English, Chinese, German, French, Italian, Spanish, Russian, Japanese

• Protection Film: Replaceable anti-scratch film

• Tilt Feature: Allows slight tilt (5°) of the printing platform after printing to allow excess resin from the model to flow back into the resin vatTechRadar+63dprinteddecor.com+6VERTEX3D+6VERTEX3D+3anycubic.biz+33dprinteddecor.com+33DJake Ireland

Included in the Box

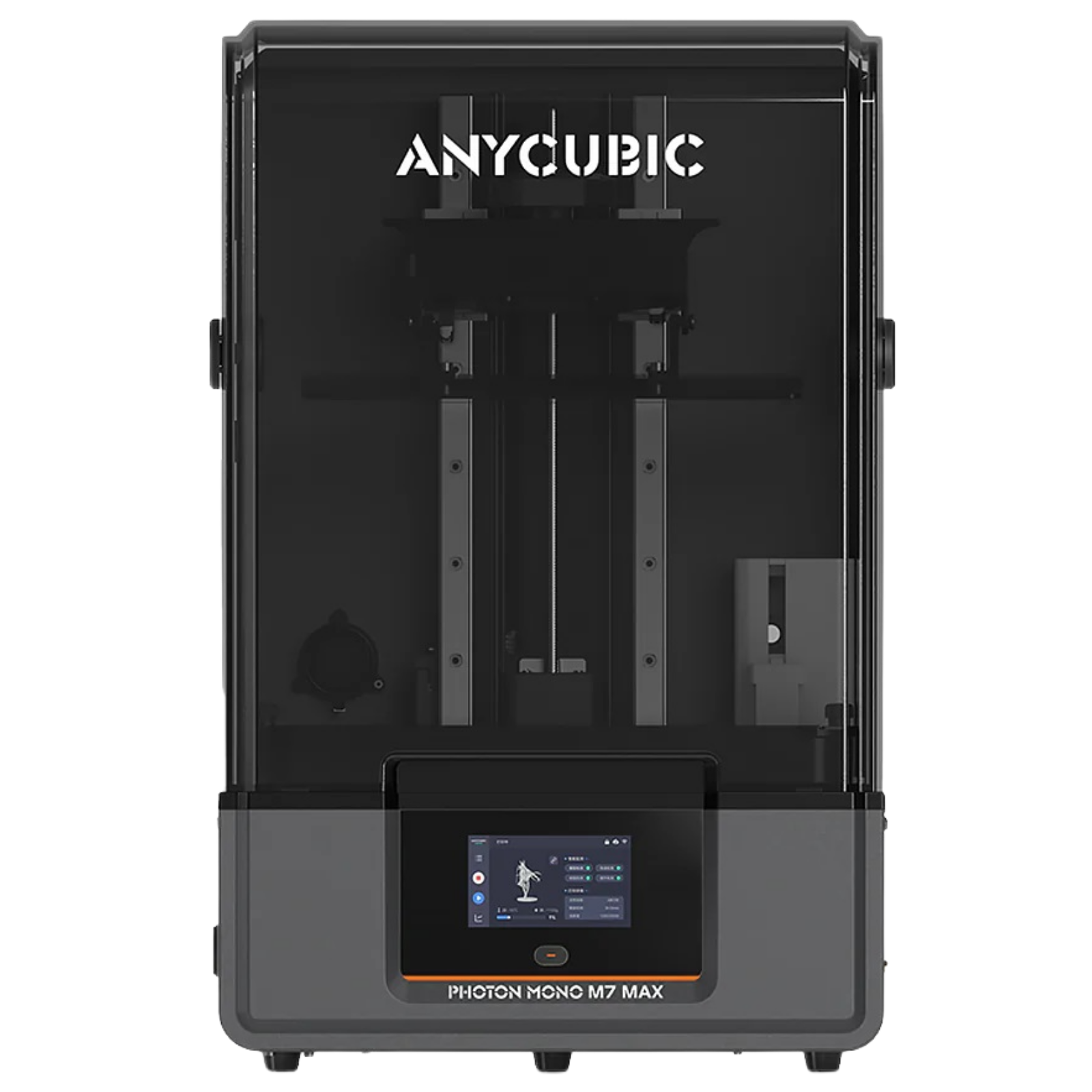

• Anycubic Photon Mono M7 Max printer

• Printing platform

• Resin vat

• Scrapers

• Allen key set

• Leveling paper

• Cover of the Auto-Fill Unit

• Power cable

• USB drive

• Power adapter

• Protective gloves

• Filter

• User manual
