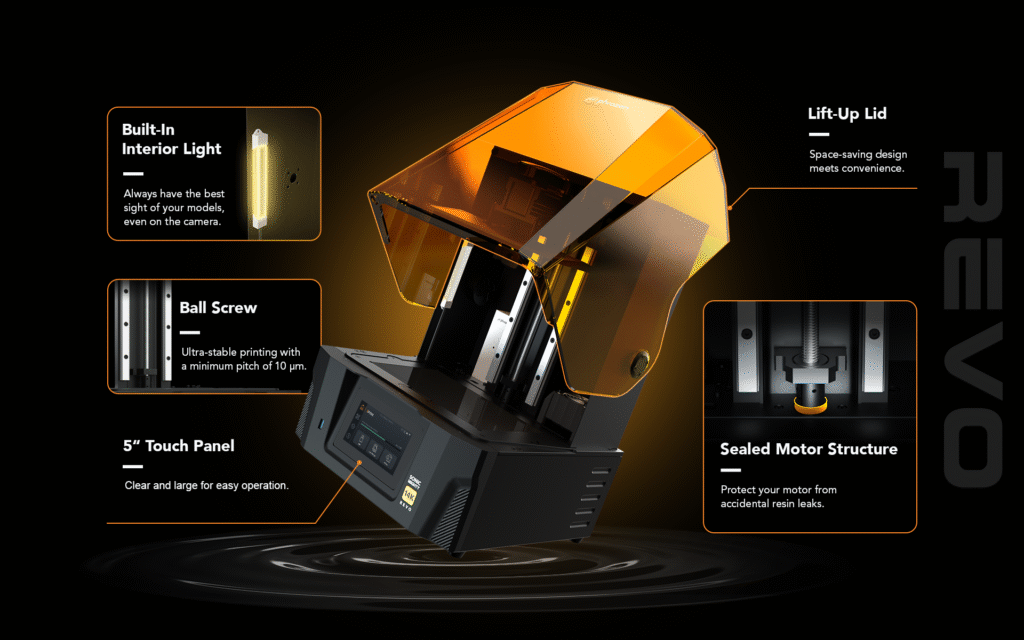

Phrozen Sonic Mighty 14k Revo SLA 3D Printer

SKU : 2725

Original price was: ₨ 530,000.Current price is: ₨ 500,000.

  • System: Phrozen OS
  • Operation: 5″ Large Touch Panel
  • Slicer Software: CHITUBOX V2.0
  • Connectivity: USB, Ethernet, Wi-Fi
  • Built-in Memory: 8 GB
  • Technology: Resin 3D Printer – LCD Type
  • Light Source: 405nm ParaLED Matrix 3.0
  • XY Resolution: 16.8×24.8 µm
  • Layer Thickness: 0.01 mm
  • Maximum Printing Speed: 70 mm/hr; 450 Layers/hr
  • Release Film: nFEP Film
  • Compatible File Format: .CTB, .PRZ
  • Power Requirement: 100 – 240V AC; 50-60Hz
  • Printer Size: 35.3 x 34.5 x 51.7 cm
  • Print Volume: 22.3 x 12.6 x 23.5 cm
  • Printer Weight: 18 kg
Shipment

Your orders are shipped seamlessly between cities

5 Days Return

You can return your orders within 5 days.

Secure Payment

Your payments are free & secure with us.

Description

Sonic Mighty Revo: An Extra Layer of Security for a Successful Print

Seamless Mobile Integration and Patented Smart Sensors

Have an Extra Eye on Your Printer

Experience the new Revo detection system thanks to our patented 3-point piezoelectric sensor. Integrated seamlessly with the Phrozen GO App, it’s connected 24/7 to your phone for timely monitoring.

● Smart Residue Detection
● Smart Failure Detection
● 24/7 Mobile Connection

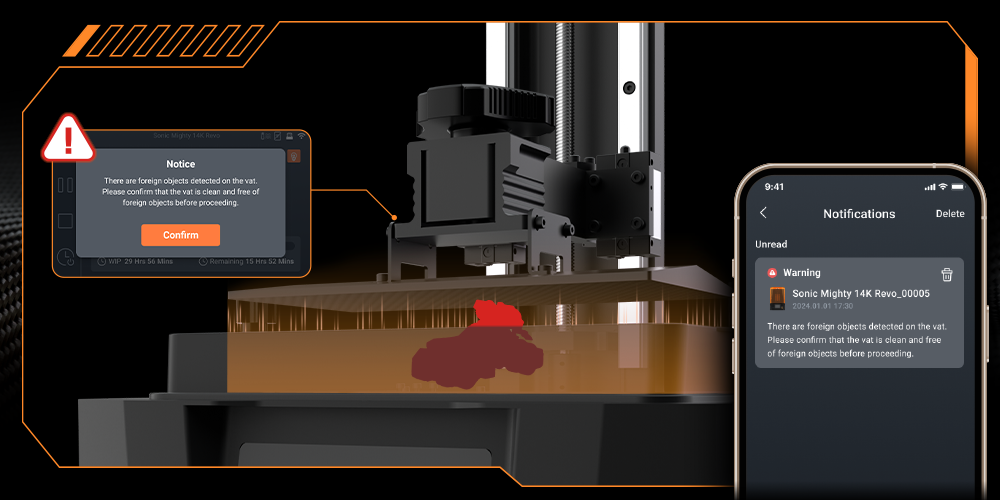

| Smart Residue Detection |

Avoid breaking your LCD screen due to cured particles in the vat.
The sensor will cue the printer to stop printing once it detects any foreign objects between the building plate and the release film upon its initial descent.*
*The sensors will detect objects ≥ 4mm.

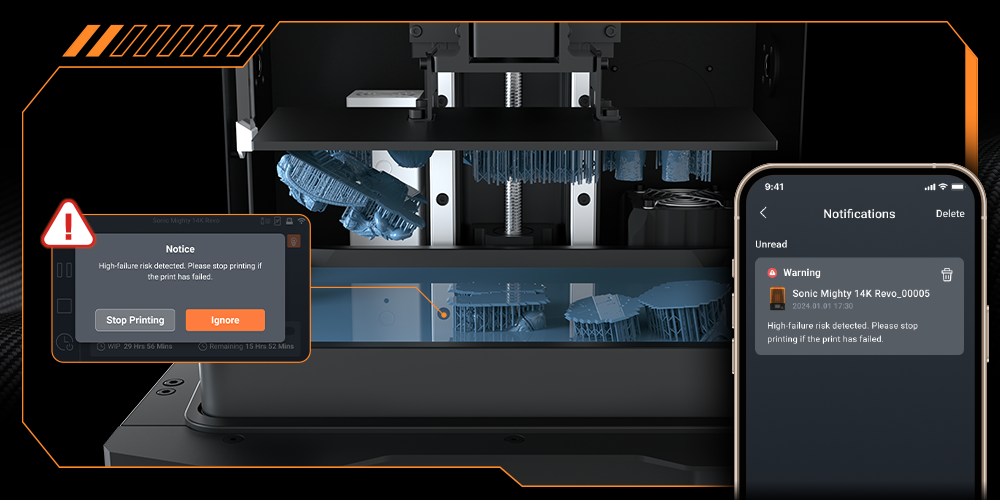

| Smart Failure Detection |

Get notified of possible failure early in both your printer and your phone (through the Phrozen GO App) when the sensors detect abnormalities during printing.
*Notifications will be triggered once sensors detect the complete absence of peeling force for 15 continuous layers, after the building plate is no longer submerged in resin.

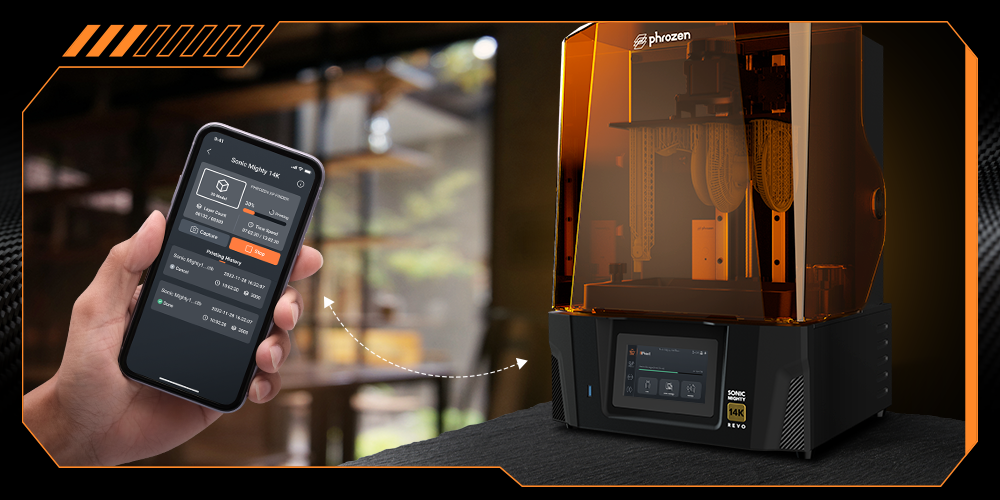

| Keep It Under Control, Even on the GO |

Always have an eye on your prints whenever and wherever you are with a mobile app made specifically for the Mighty.Monitor your print on the go or stop printing upon the earliest detection of failure, all from the palm of your hand.
Timelapse video will soon be available, while the live streaming function will be updated in Q4.

Performance Enhancement

Avoid the hassle that comes with trial and error of manual adjustment and environmental changes
thanks to Revo’s performance enhancement features.

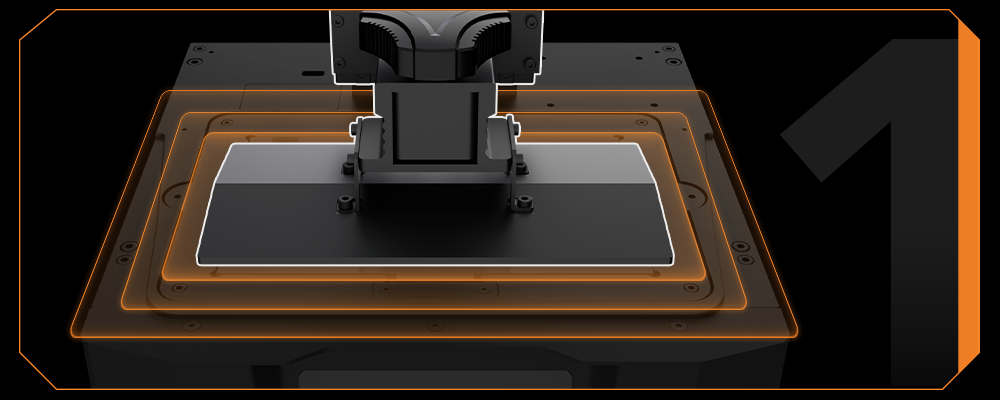

Smart-Leveling

Calibrate the Z-axis with just a press of a single button thanks to its automatic zero-point detection sensor. Always start right without the hassle.
*Manual adjustment may be needed if the printer is moved or frequently fails to print.

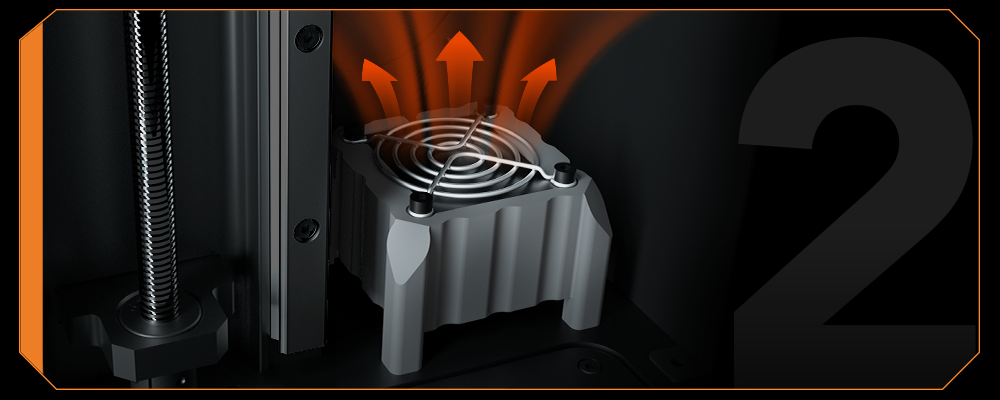

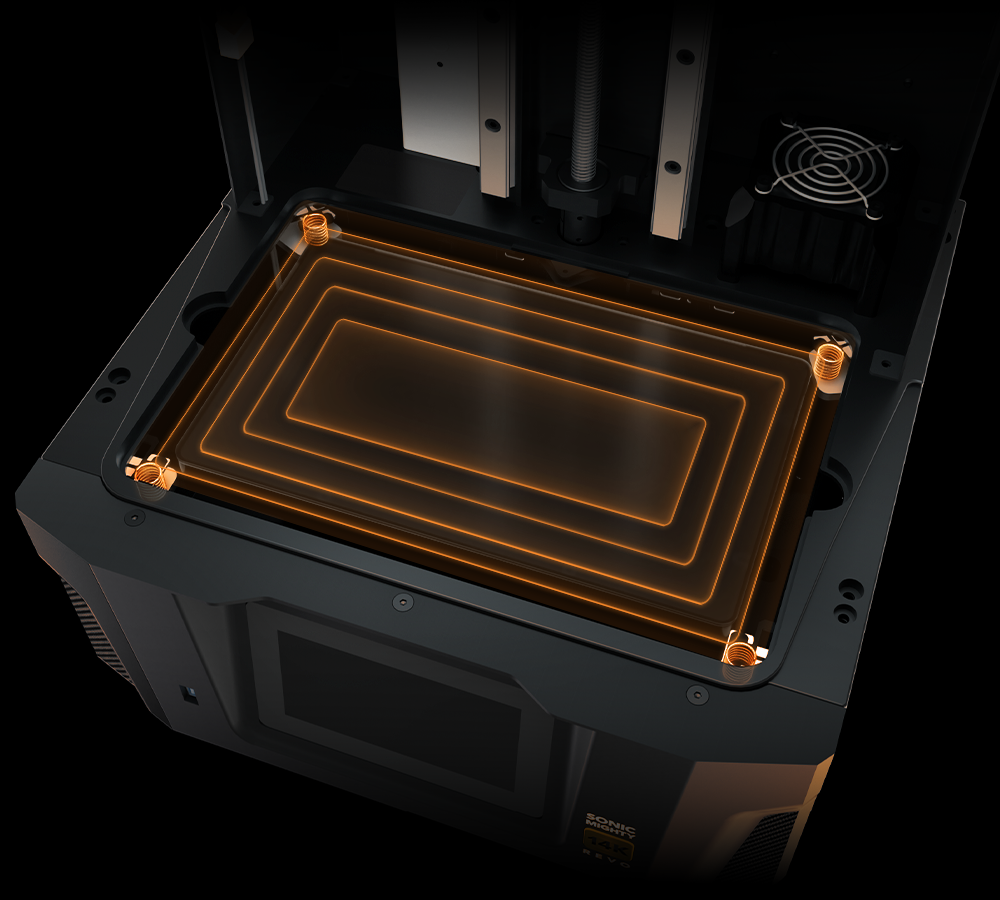

Built-in Heater

Resin reaction speed decreases by 30-60% with every 10°celcius drop due to increased viscosity, so a heater enhances success rate by maintaining the most optimum resin temperature.

Reduce Smelly Fumes, Breathe Cleaner Air

Pungent resin odor in your living area can be annoying.
Revo is equipped with an air purifier and built-in exhaust vent, covering your printing needs and ensuring a more enjoyable setting.

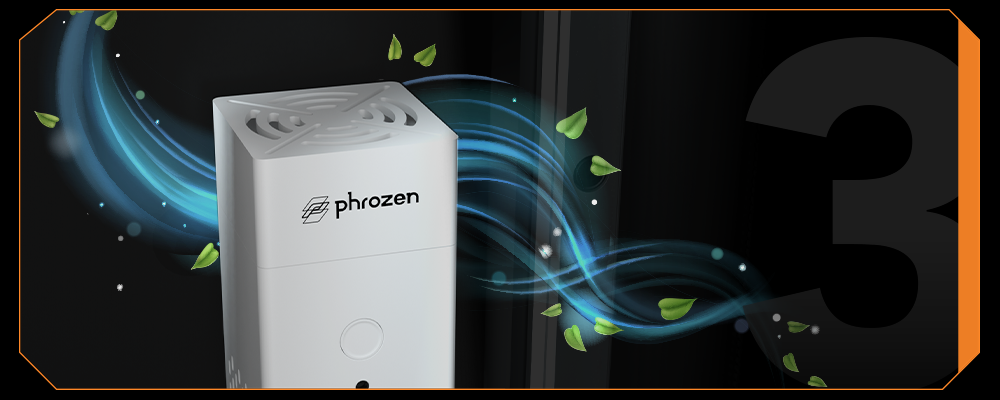

Air Purifier

Adsorb resin fumes directly within the printing enclosure, ensuring a cleaner workspace and elevating your overall printing experience.

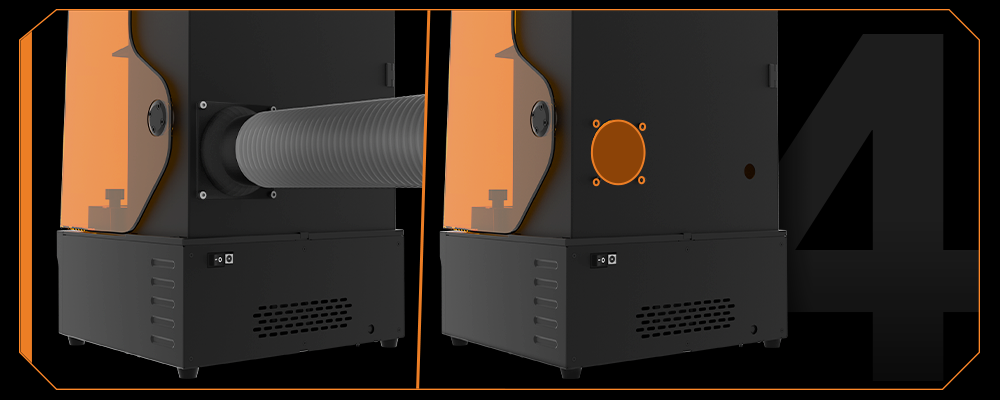

Built-In Exhaust Vent

Keep your living area free from unpleasant smells
by connecting a ventilation hose through the Revo’s exhaust vent.

User-Friendly Operation

The Sonic Mighty Revo is designed with extra features that will significantly enhance your smart 3D printing experience.

1 Minute LCD Replacement

LCD replacement can be intimidating with lots of screws and cables to handle, but not on the Revo.
Rest assured that when it’s time to ever have your screen replaced, everything is quick and hassle-free.

Sharper | Clearer | Smoother

The Revo Experience

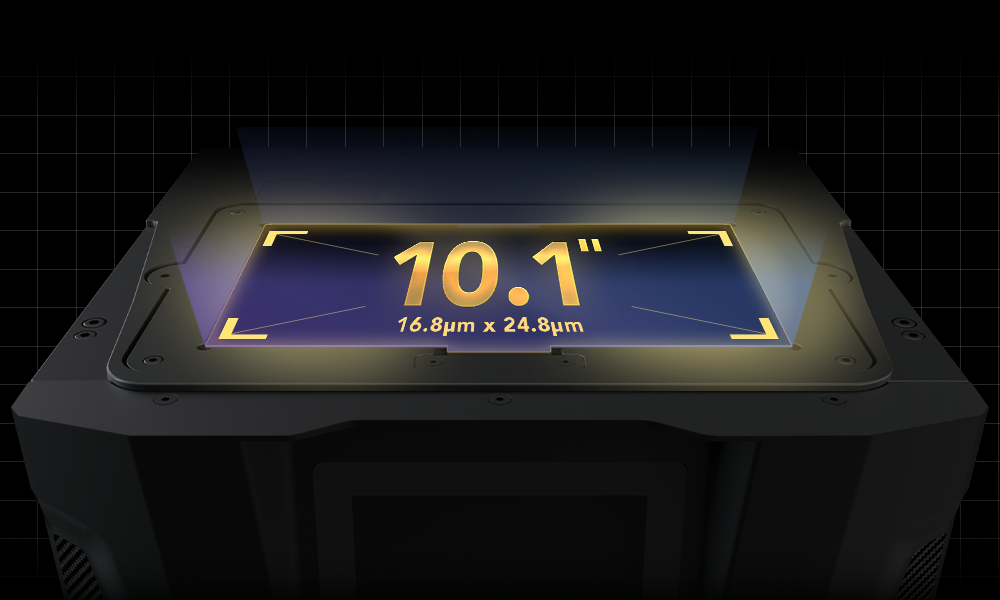

Boasting the 10.1” screen of Phrozen’s Mighty Series size you are familiar with, the Sonic Mighty Revo takes your prints to new heights with a more uniformed light intensity and details up to 16.8 μm x 24.8 μm, almost five times thinner than your typical A4 paper.

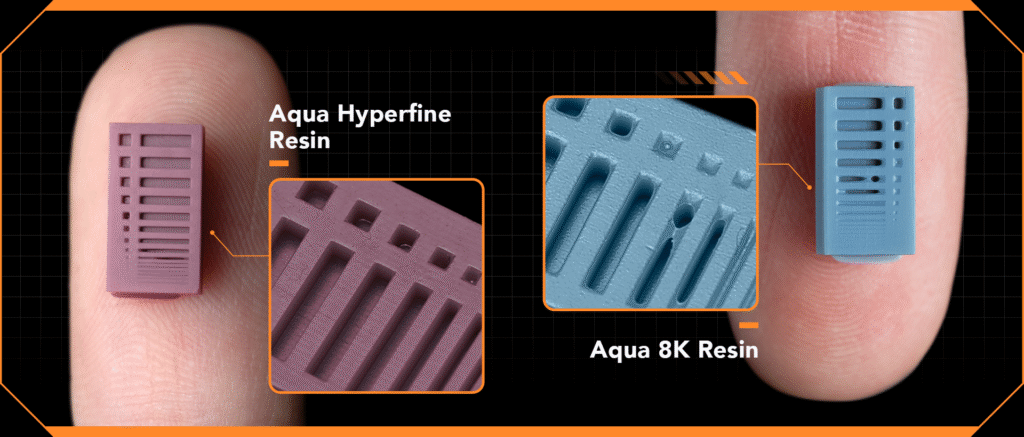

Specifically formulated to enhance surface smoothness and detail precision on printer resolutions higher than 8K,
the Aqua Hyperfine Resin is here to bring out the best of Sonic Mighty Revo.

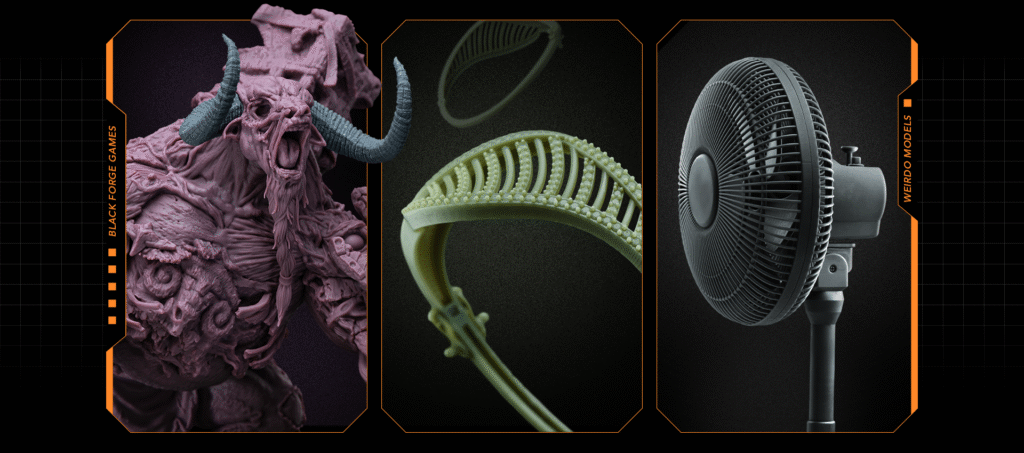

Printed on Sonic Mighty Revo

Behold the Unmatched Details of Aqua Hyperfine Resin!

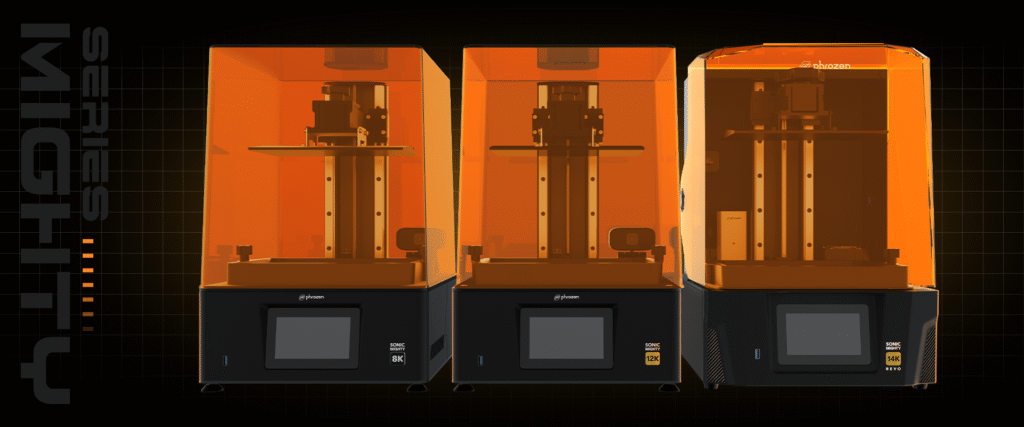

Find the Perfect Mighty for You

 Sonic Mighty 8KSonic Mighty 12KSonic Mighty Revo
HeaterXX
Plug-in Air PuriferXX
Auto LevelingXX
Printer Size33.7 x 33.7 x 51.6 cm35.3 x 34.5 x 51.7 cm
Print Volume21.8 x 12.3 x 23.5 cm22.3 x 12.6 x 23.5 cm
XY Resolution28 µm19 µm x 24 μm16.8 µm x 24.8 µm
Print Speed400 layers/hr400 layers/hr450 layers/hr
RailDual Linear Guide
(Lead Screw)
Dual Linear Guide
(Lead Screw)
Dual Linear Guide
(Ball Screws)
Operation5″ Touch Panel
Release FilmnFEP Film
File Format.CTB.CTB, .PRZ.CTB, .PRZ
StorageBuilt-in MemoryBuilt-in Memory8 GB



Additional information

Weight 22 kg
Brand

Brand

Phrozen
