Description
Why choose Photon P1?

Wave Release Technology

Precision-Fitted Industrial-Grade Ball Screw

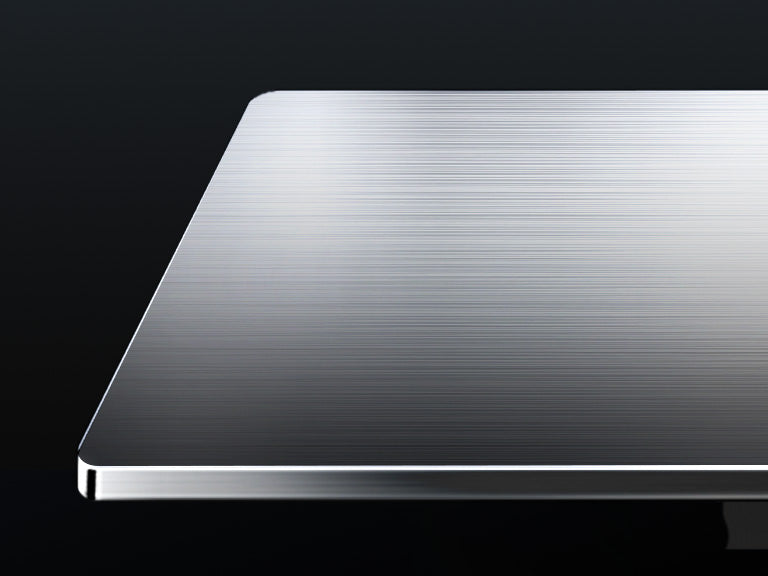

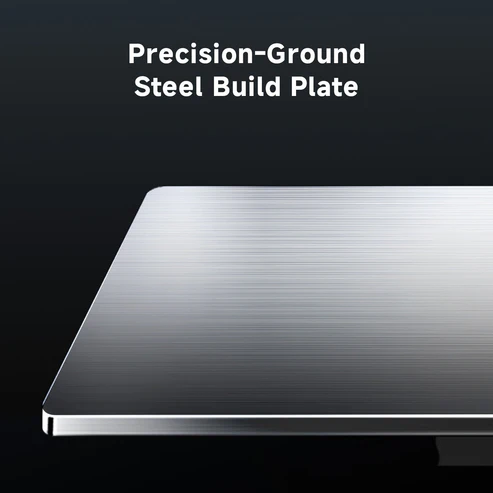

Precision-Ground Steel Build Plate

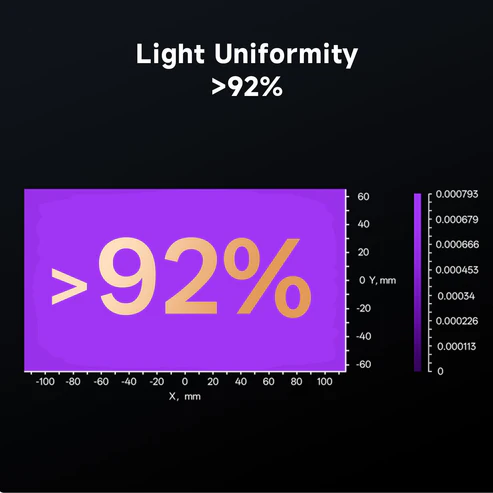

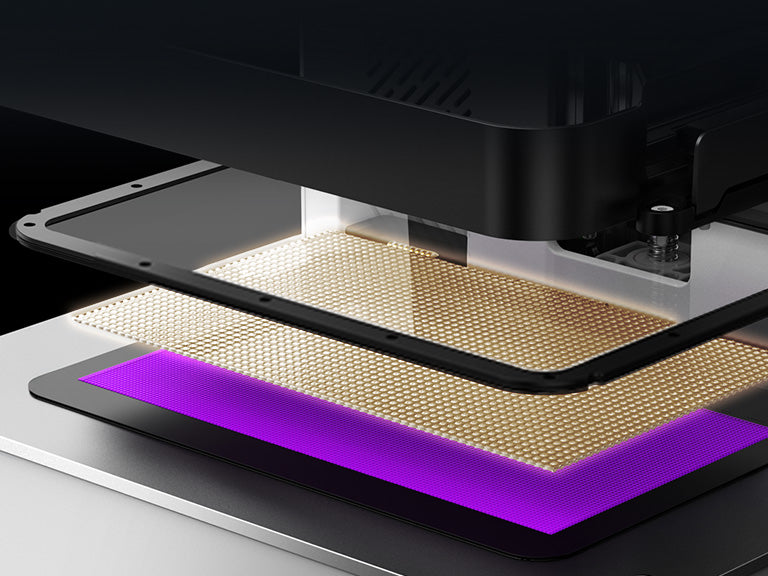

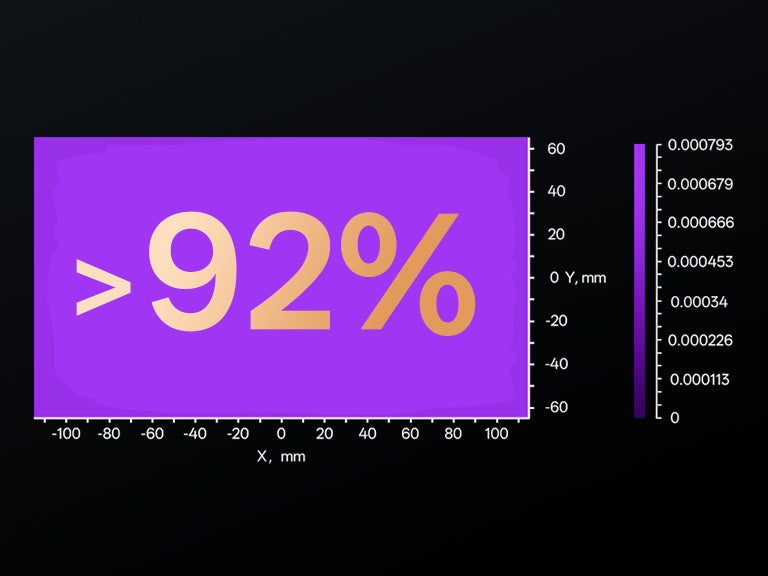

Light Uniformity >92%

Engineered for Ultra-Viscous 8000cps Resin

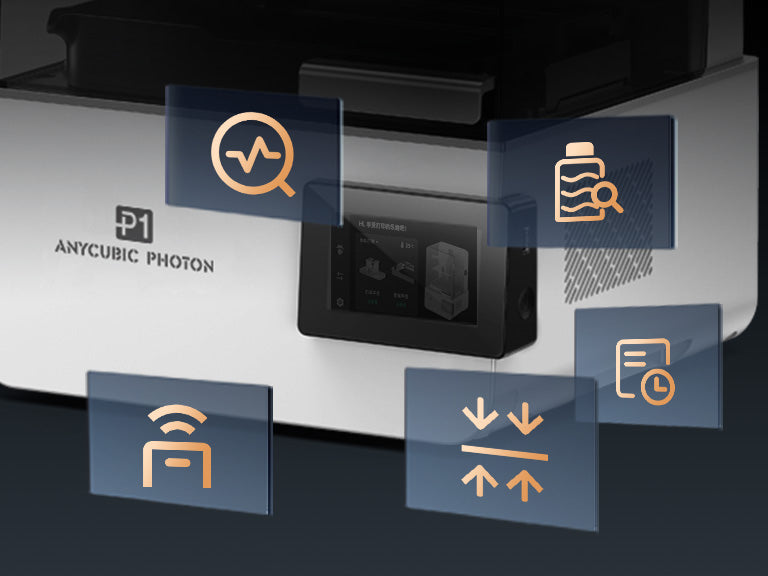

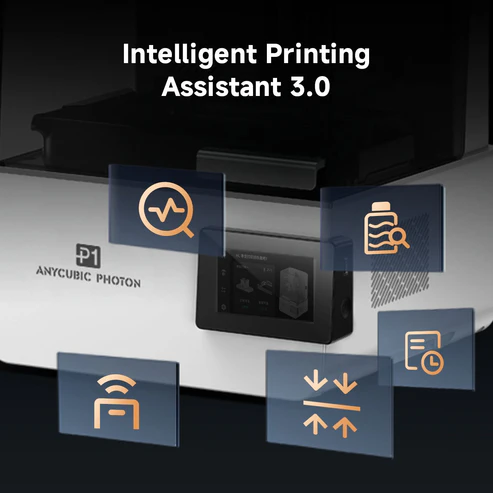

Intelligent Printing Assistant 3.0

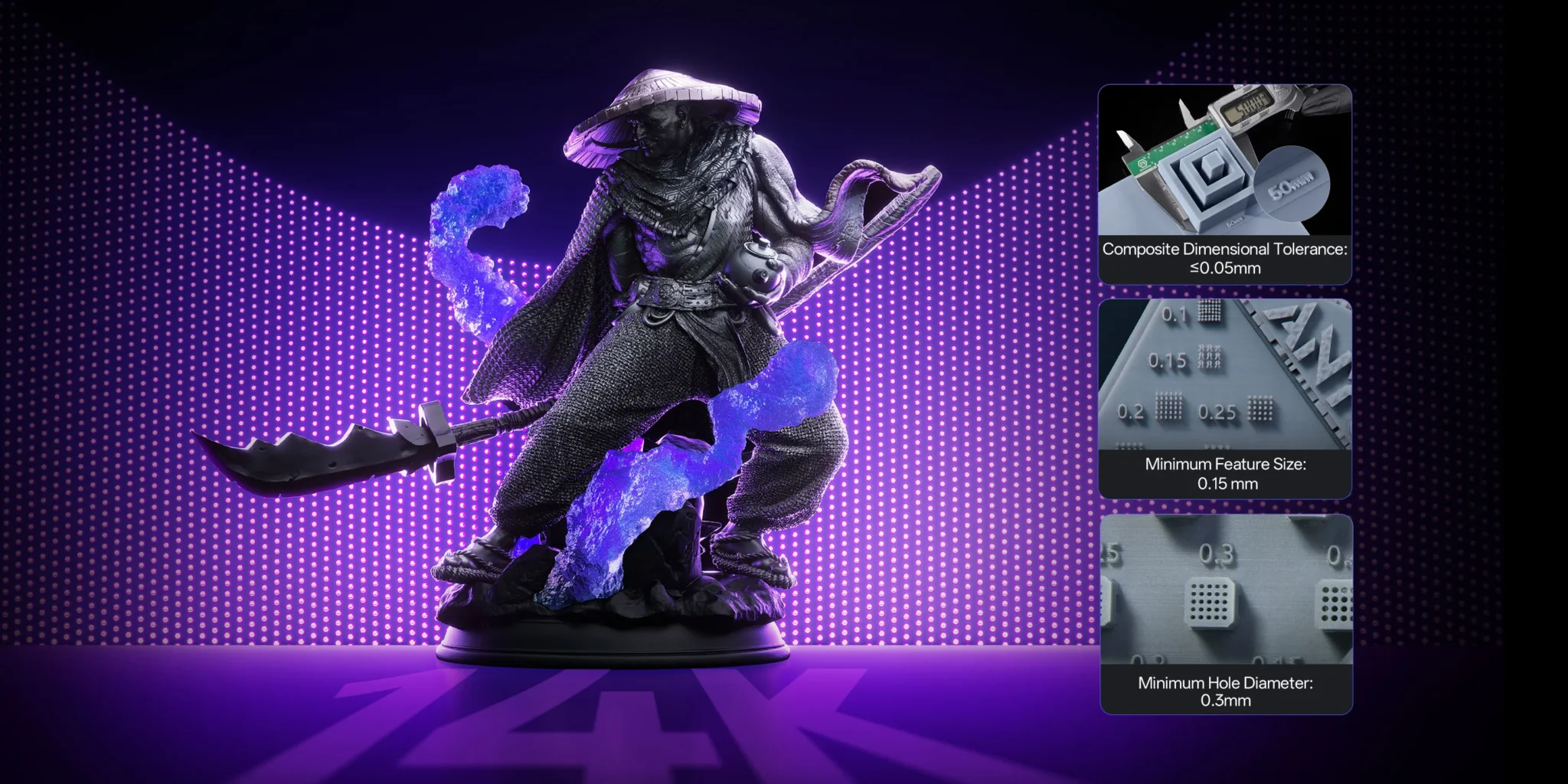

Tolerance Down to the Width of a Human Hair

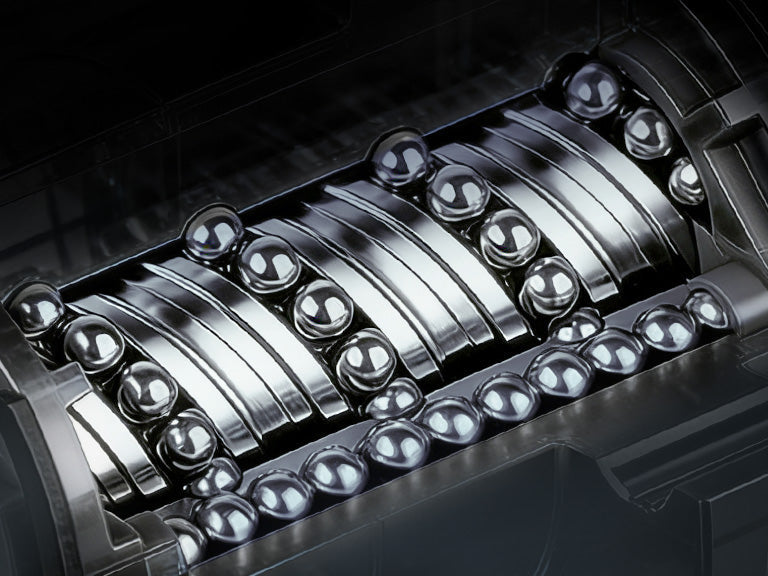

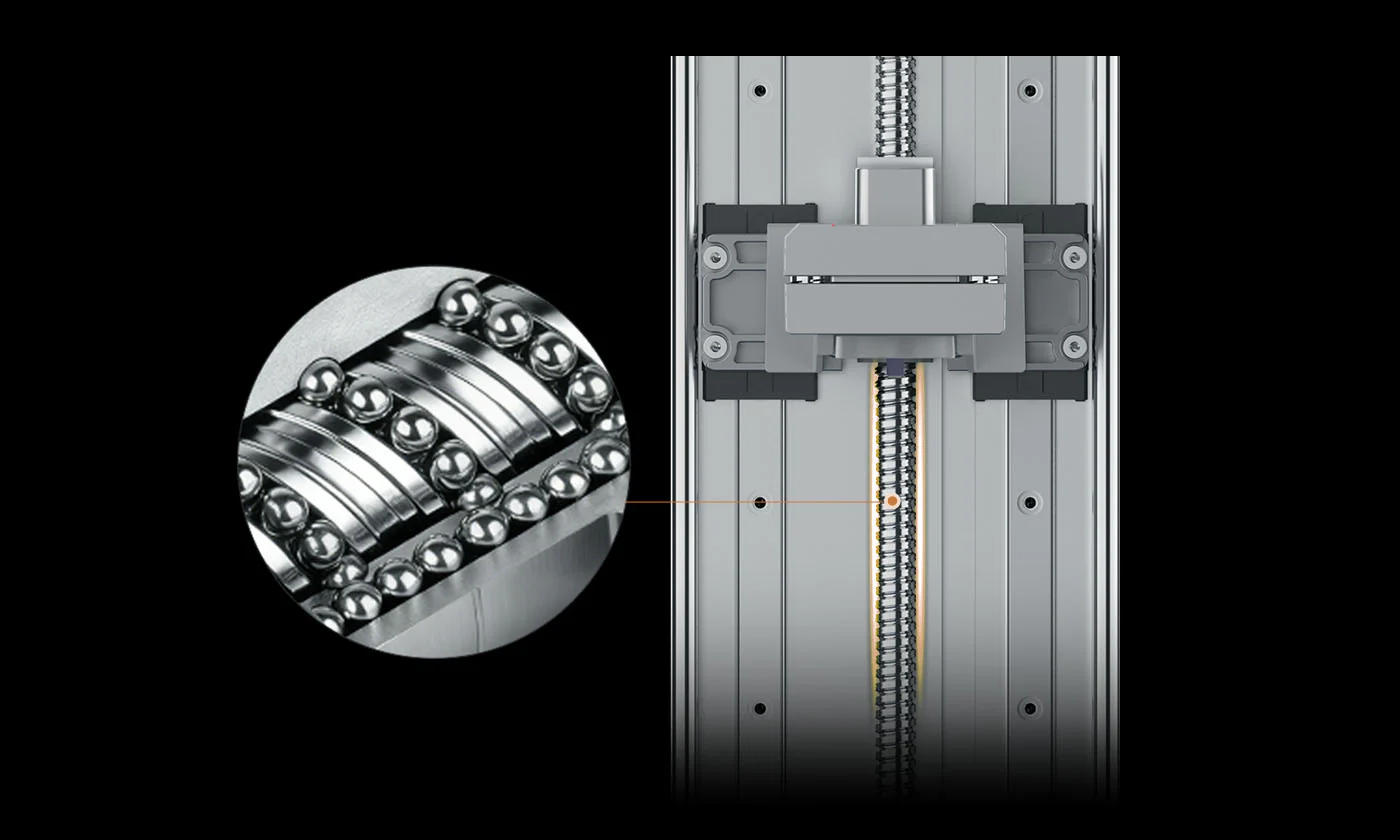

Precision-Fitted Industrial-Grade Ball Screw
The Anycubic Photon P1 utilizes industrial-grade ball screws and linear guide rails, achieving a remarkable repeat positioning accuracy of ±0.01mm. This robust motion control system provides a rock-solid foundation, ensuring stable operation and print precision.


Once Blurry Edges are Now Highly Defined
14K High-Resolution Screen: 13312 × 5120 px
XY Pixel: 16.8 × 24.8 μm

Easier Done than Said

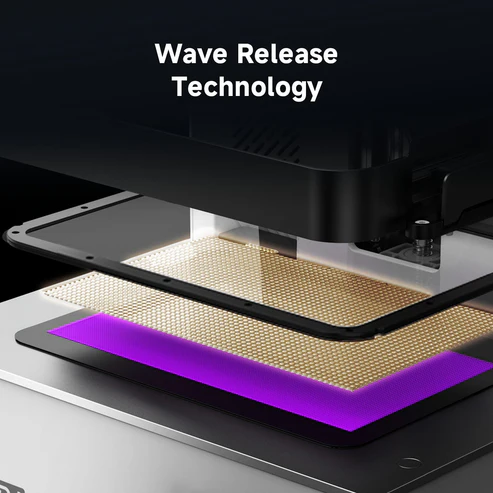

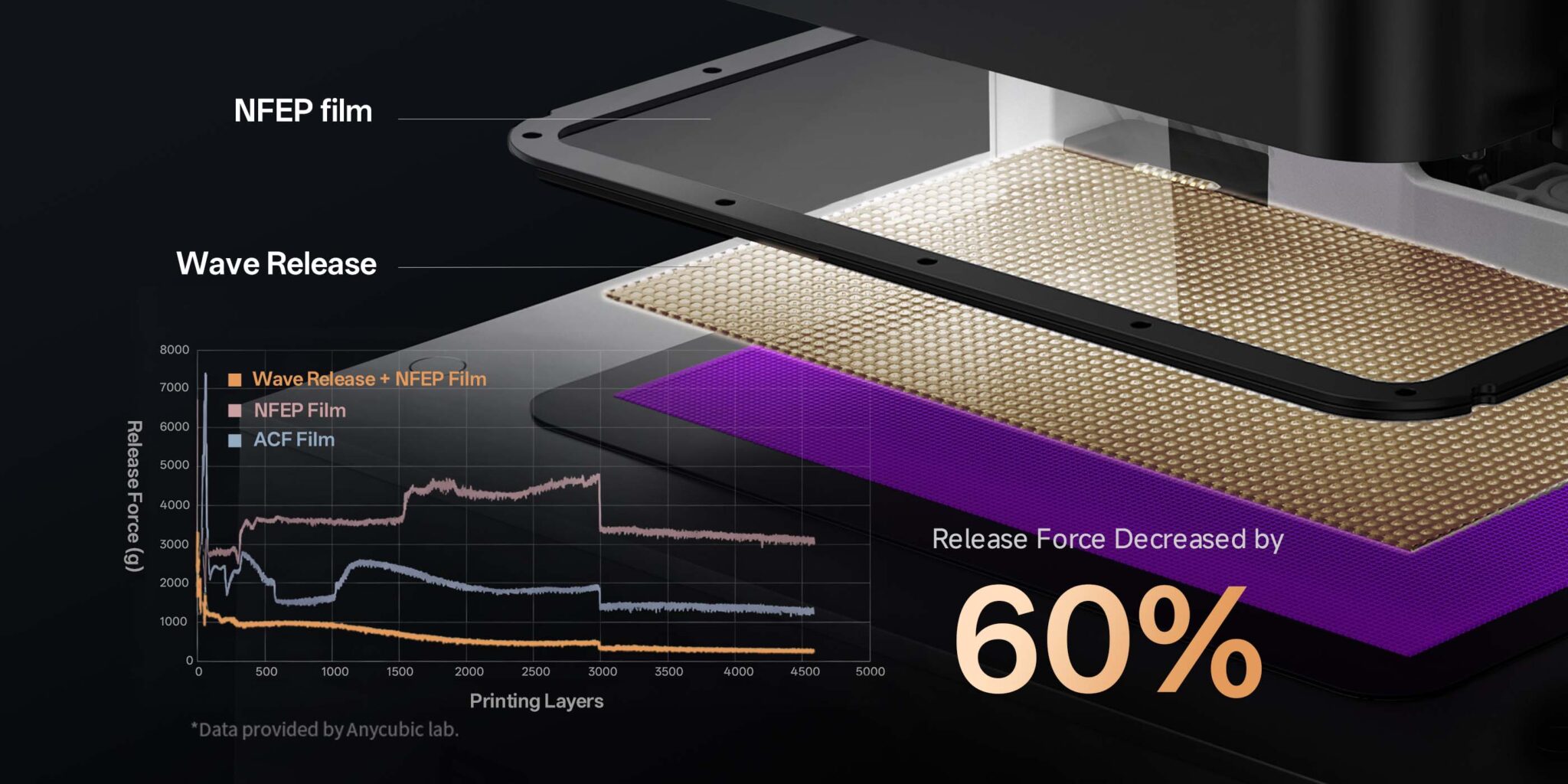

Wave Release Technology
The Wave Release Technology reduces release force by a massive 60% compared to traditional smooth-surface NFEP film, ensuring superior print quality and consistency

Factory Calibration
Prints right out of the box

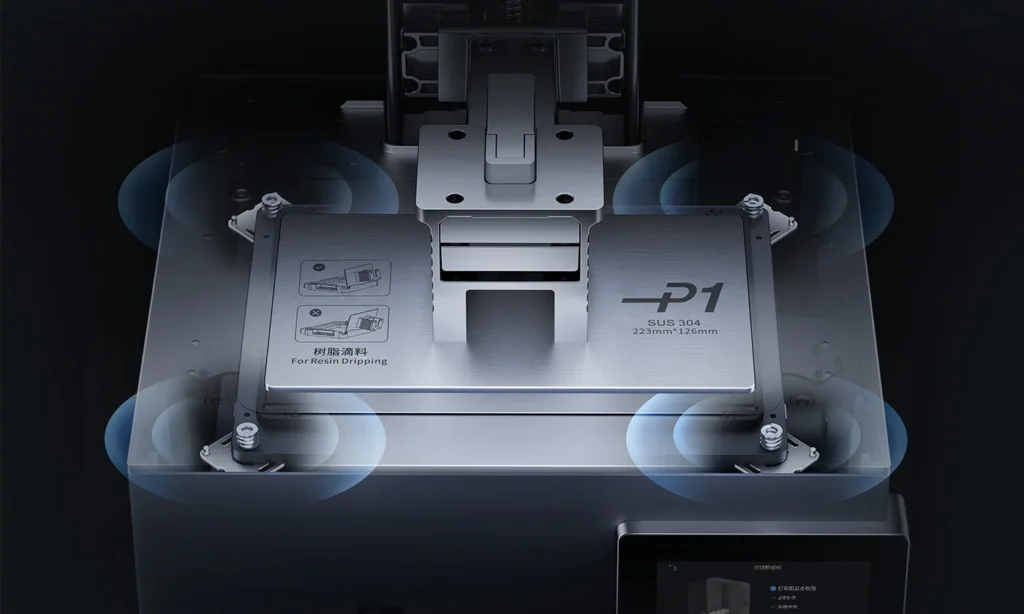

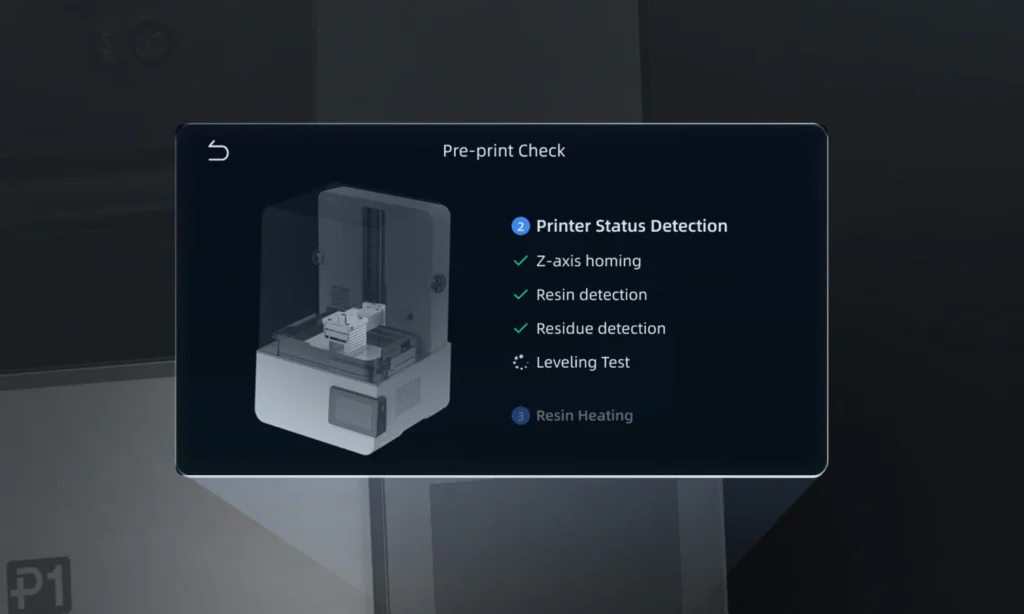

Auto-Leveling Self-Check
Automatically performs bed leveling self-check before printing to ensure optimal platform readiness.

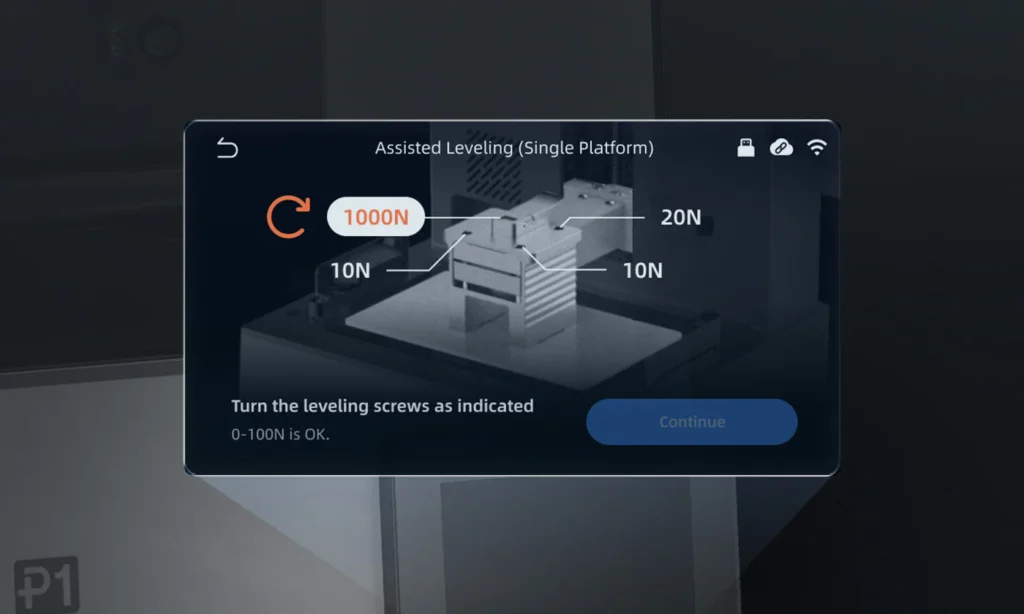

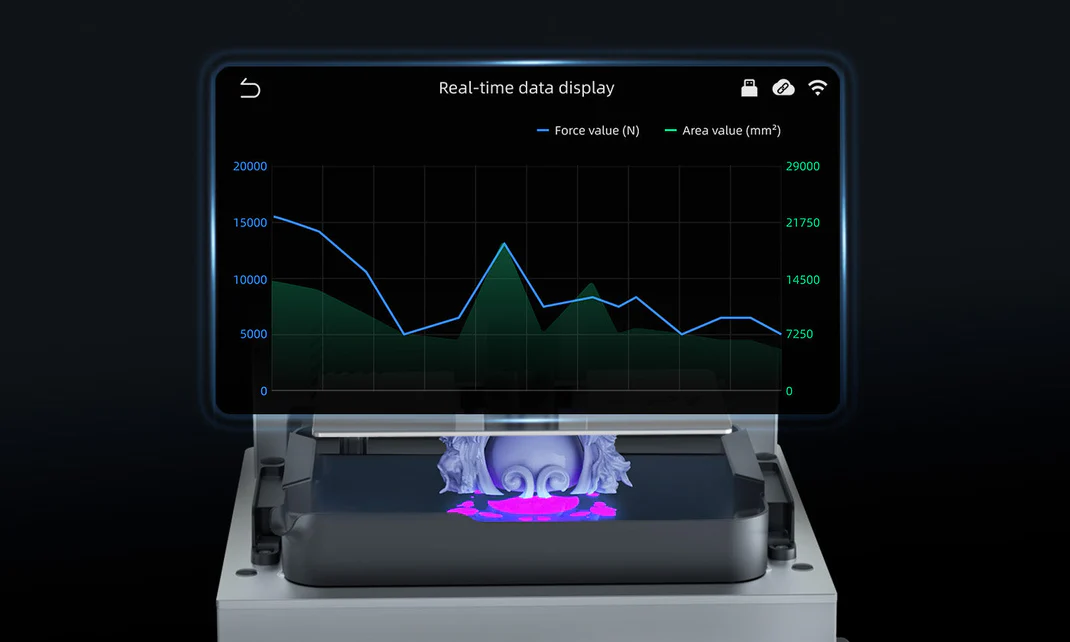

Leveling-Assist
Displays real-time force values at four corners for fine-tuning.


Intelligent Dynamic Adjustment, Fast & Steady Wins the Race
Dynamic Release 3.0
Monitors real-time layer separation forces to modulate the lift height and speed. This ensures reliable release with every layer, significantly boosting both print success rate and quality.
Light-Off Compensation 3.0
Calculates resin flow-back rate and dynamically adjusts the light-off duration to precisely prepare each layer for exposure, ensuring optimal speed and efficiency.
Built to Handle Ultra-Viscous 8000cps Resin

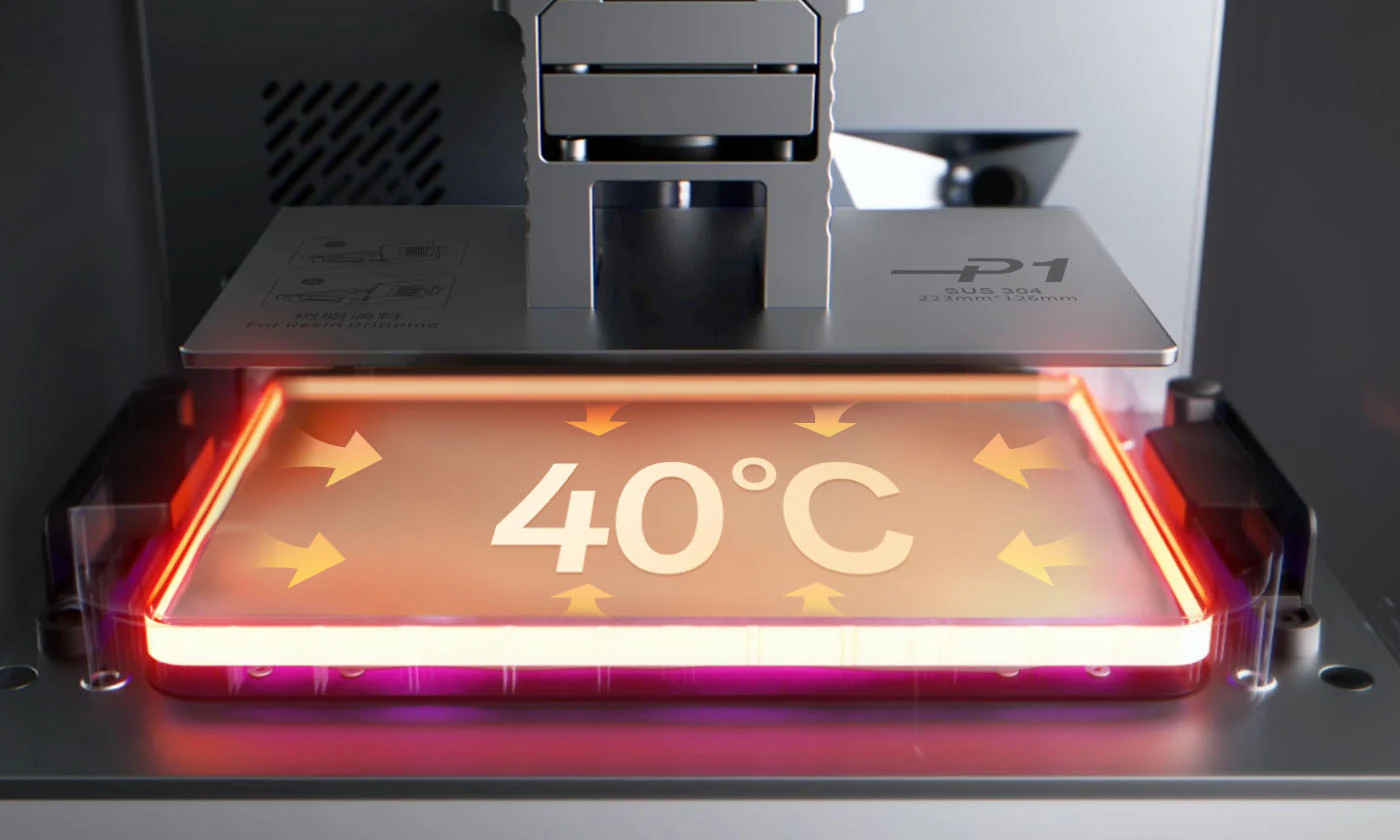

1000ml Thermal-Controlled Resin Vat
The integrated thermal control system maintains a constant resin temperature of up to 40°C. By optimizing resin flow and viscosity, the P1 ensures consistent performance and success rates.

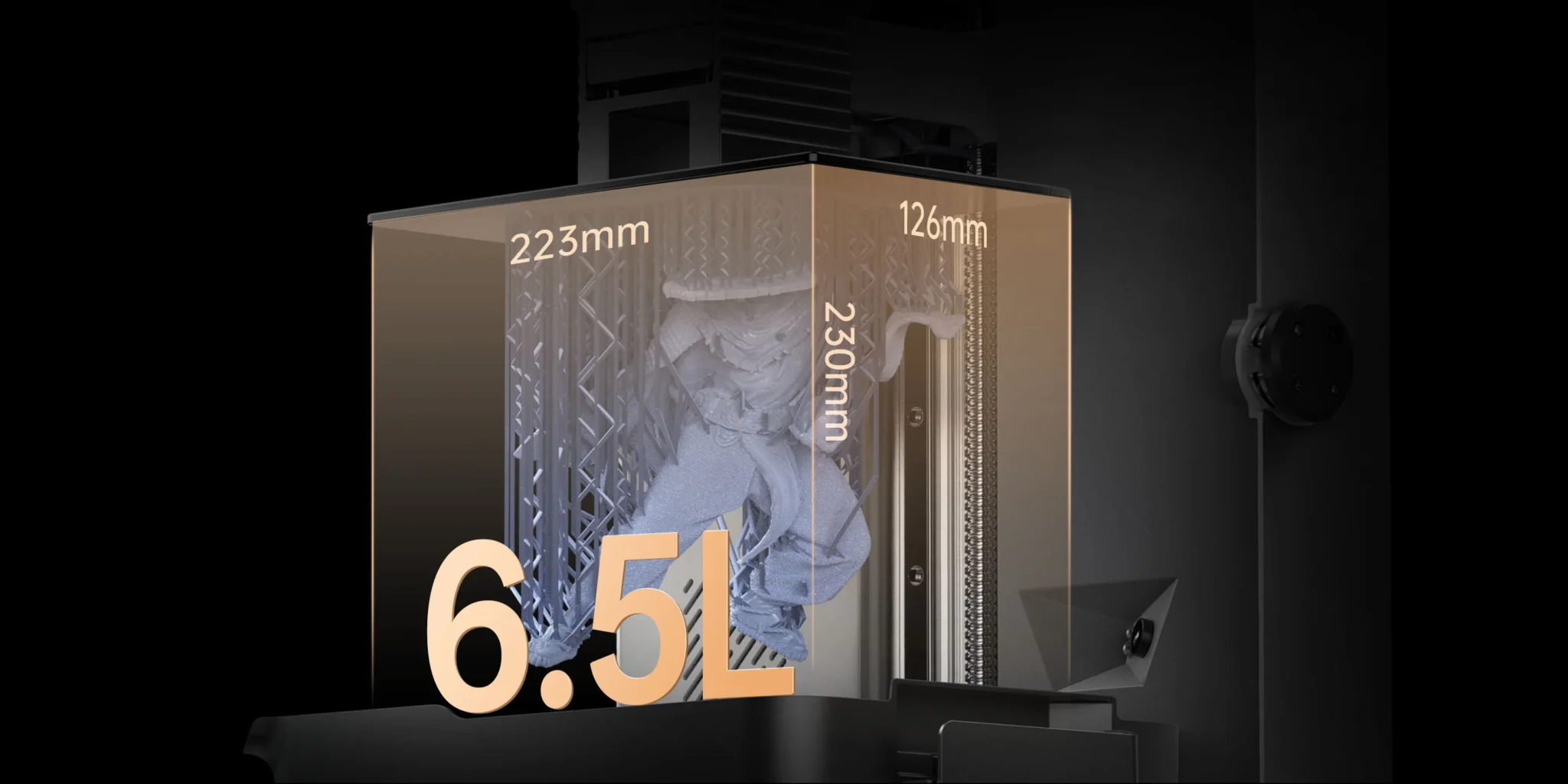

6.5L Build Volume, Build Whatever You Want



Simultaneous Dual-Color/Dual-Material Printing
Reduces consumption of premium resin for small model printing.
Enables simultaneous dual-material/dual-color printing[2] for multi-part models.
Makeronline, One of the Biggest Online Model Libraries
- Massive Model Library
- Monetize Your Designs
- Global Knowledge Exchange
- AC Wiki Troubleshooting Expert

Specification
- Printing Volume
223*126*230 mm³ (6.5 L)
Printing Speed
25-35 mm/h (0.05 mm layer, Std Resin)
- Layer Height Range
0.02-0.15 mm
- X/Y Axis Resolution
16.8 × 24.8 μm
- Light Source
COB + Fresnel + Mask
- Light Intensity
5000 μW/cm²
- Material Compatibility
All Anycubic Resins
- Build Platform
Precision Steel Platform
- Z-axis
Dual Rail + Ball Screw
- Release film
NFEP
- Resin Vat
≤1 L
- Machine Leveling
Auto-Leveling 3.0 with Feedback
- Power Loss Resume
Supported
- Power Supply
215W
- Protection Film
Bump-Release Tech (Integrated)
- Resin Auto-fill Unit
Not Supported
- Dynamic Temperature Control Resin Vat
Supported
- Slicing Software
Photon Workshop(+ Chitubox/Lychee/Tango)
- Hinged Cover
Smooth Hinge (>45° stepless)
- Operating Screen
4.5″ Resistive Touchscreen
- Air Purifier
Optional AirPure 2.0
- LCD Screen
10.1″ Monochrome LCD (14K)
- Anycubic App
Supported
- Multilingual Support
EN / CN / DE / FR / IT / ES / RU / JP / PT / KR
- Machine Weight
13.6 kg
- Package Weight
17.6 kg
- Product Dimensions
366*338*539 mm³
- Packaging Dimensions
