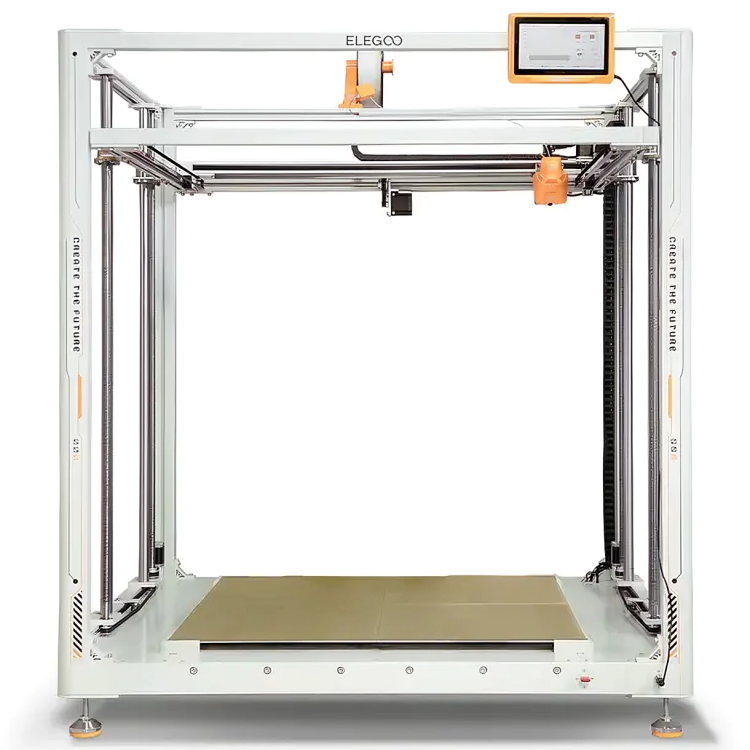

Elegoo Orange Storm Giga FDM 3D

The Elegoo Orange Storm Giga is no ordinary 3D printer. With its huge build volume of 800 x 800 x 1000 mm, it exceeds all dimensions that one is used to from home 3D printers. This colossus forms a bridge between hobby and professional use, and opens up completely new possibilities for ambitious makers.

Features at a glance:

• Robust construction in industrial quality,
• Build volume of 800 x 800 x 1000 mm,
• Heated bed with 4 independent PEI high temperature platforms,
• Automatic detection of the platform used and its individual heating,
• 64-bit quad-core high-performance processor for high-speed printing of up to 300 mm/s,
• Optional multi-nozzle printing with the possibility of attaching three additional print heads for multi-colour printing,

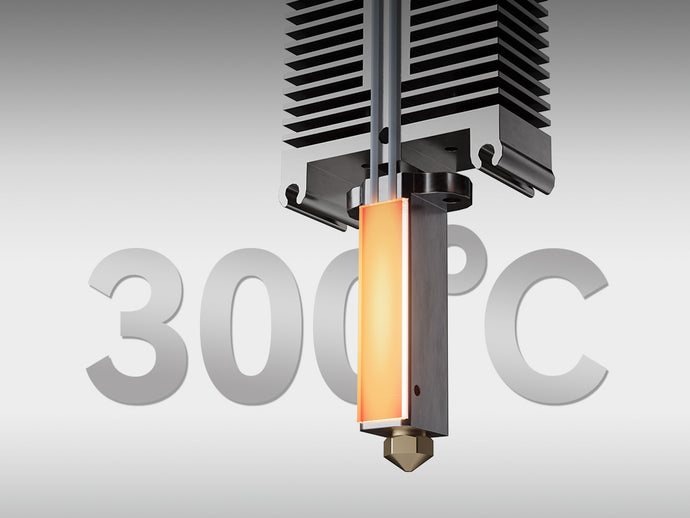

• Improved nozzle design for a printing temperature of max. 300 °C,
• Automatic PID calibration function for precise control of the nozzle temperature,
• Automatic one-click levelling and a contactless high-precision sensor ensure the flatness of the platforms,

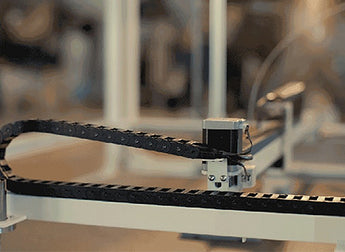

• Special cable rails for durable cables,
• Filament detection and power loss recovery,

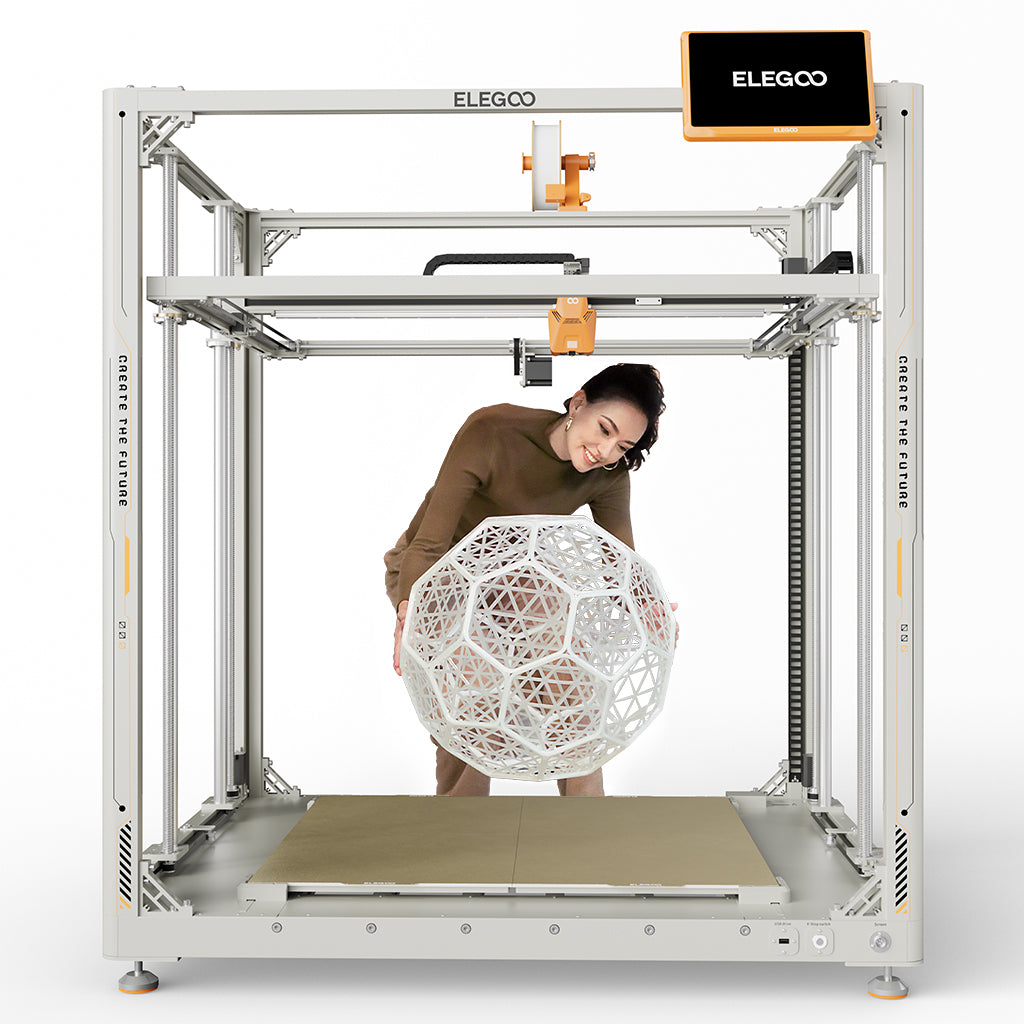

A giant among FDM printers

The Orange Storm Giga impresses with its gigantic build volume of an incredible 800 x 800 x 1000 mm. The industrial-grade 3D printer offers almost unlimited possibilities for carrying out huge projects without the need to print large-format models in several passes.

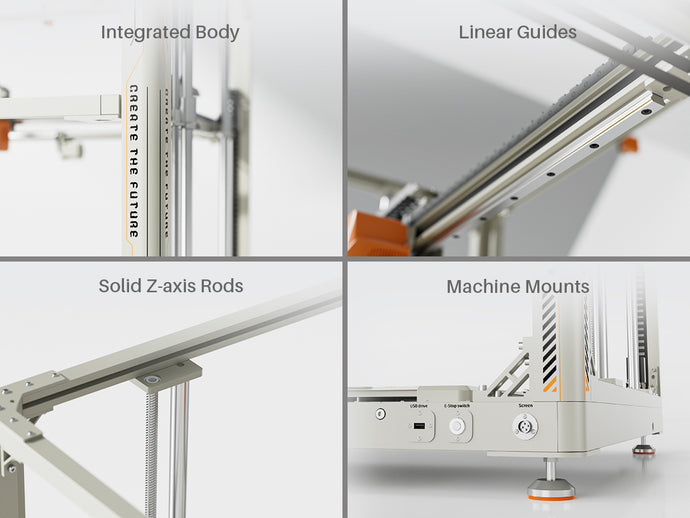

Robust construction

The FDM printer is designed for demanding use and impresses with its sturdy construction. The giant has an elegant and durable integrated housing; the X and Y axes are linear guides that effectively improve printing stability and extend the service life. The Z-axis has a robust guide rod that ensures smooth operation and precise levelling. The printer itself is equipped with round carbon bases with anti-slip rubber pads.

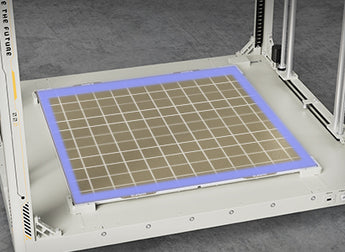

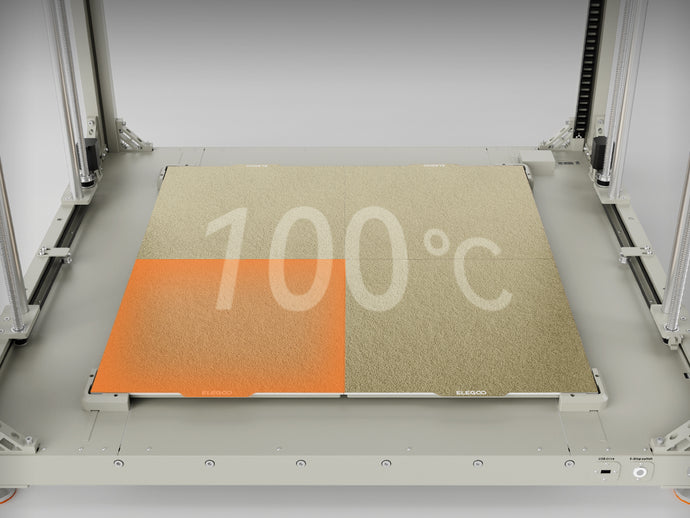

Bed with four independently heated platforms

The OrangeStorm Giga ‘s heatbed consists of four independent magnetic PEI build plates. These high-temperature platforms (each measuring 410 x 410 mm) are designed for a maximum temperature of 90 °C and can be heated simultaneously. They reach a temperature of 90 °C over the entire surface within approximately 17 minutes (at an ambient temperature of 25 °C).

Special sensors enable the platform on which the model is located to be automatically detected in order to heat it. However, the individual build plates can also be heated and controlled manually and independently of one another as required.

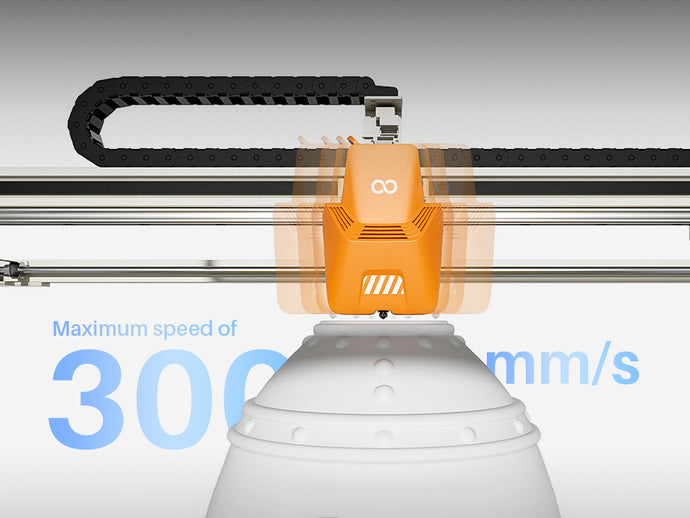

Rapid speeds

Thanks to a 64-bit quad-core high-performance processor (SOC RK3328) with a clock speed of 1.5 GHz, the gigantic printer achieves a printing speed 6 times higher than other 3D printers of this size:

• Max. printing speed of 300 mm/s,
• Recommended printing speed of 150 mm/s.

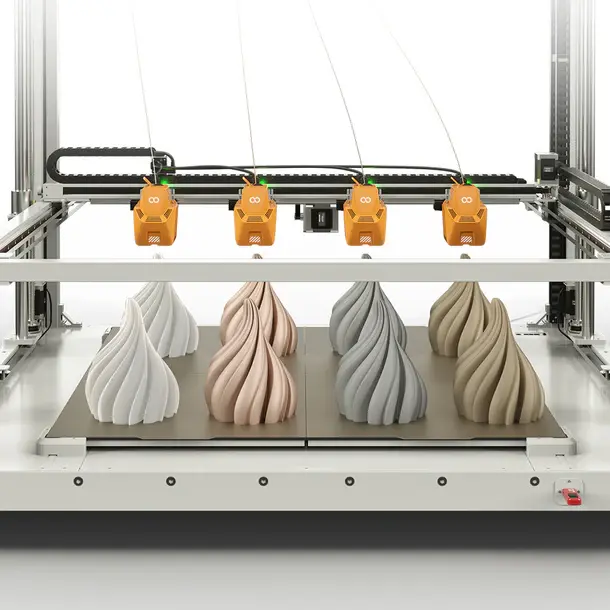

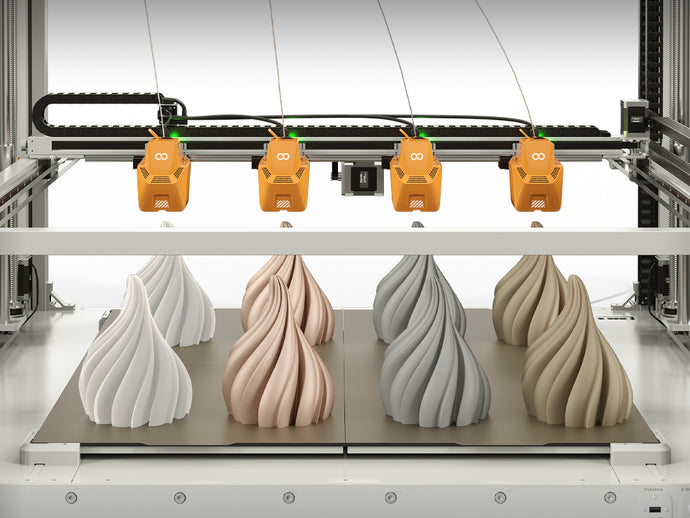

Multi-nozzle printing

The printer allows you to attach three additional print heads to the X-axis to print four models at the same time. In addition, you can use different coloured filaments of the same material to bring your printed objects to life with colour.
